IQFH36N04NM6

OptiMOS ™ 6 40 V 功率 MOSFET,采用紧凑、高性能 PQFN 8x6 封装,具有业内基准 RDS(on)
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IQFH36N04NM6
IQFH36N04NM6
每件.

商品详情

  • ID (@25°C) max
    656 A
  • QG (typ @10V)
    206 nC
  • RDS (on) (@10V) max
    0.36 mΩ
  • VDS max
    40 V
  • VGS(th)
    2.3 V
  • Package

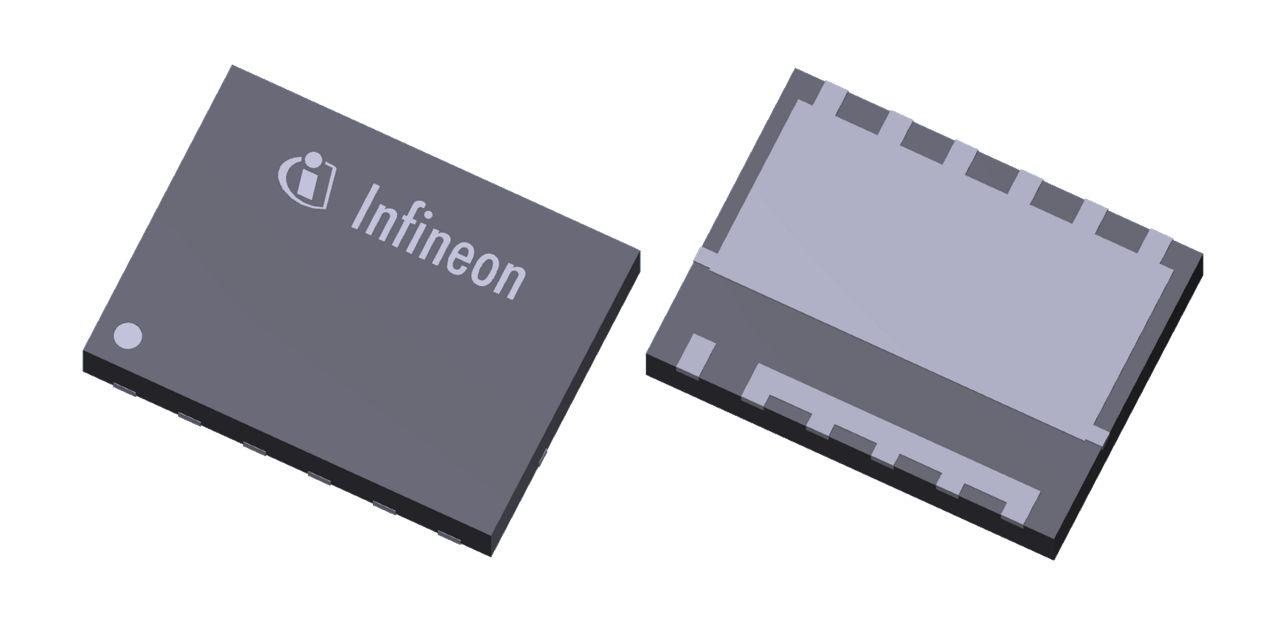

    PQFN 8x6
  • Operating Temperature
    -55 °C to 175 °C
  • Polarity
    N
  • Budgetary Price €/1k
    3.05
OPN
IQFH36N04NM6ATMA1
产品状态 active and preferred
英飞凌封装名称
封装名 PQFN 8x6
包装尺寸 3000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 PQFN 8x6
包装尺寸 3000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

特性

  • 尖端 OptiMOS ™硅技术
  • 高芯片/封装比
  • 紧凑尺寸,超高电流
  • 超低封装寄生效应
  • 优化的引线框架和 Cu-Clip 设计
  • 封装与 PQFN 5x6 兼容
  • 布局紧凑,并行度较低

产品优势

  • 最小化传导损耗
  • 高功率能力
  • 卓越的设备性能
  • 降低电压过冲
  • 卓越的热性能
  • 重复使用电路板以实现多个功率级别
  • 卓越的开关性能/EMI
