IRHNS67264SCS

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRHNS67264SCS
IRHNS67264SCS

商品详情

  • ESD Class
    Class 3A
  • ID (@100°C) max
    31.5 A
  • ID (@25°C) max
    50 A
  • QG
    220 nC
  • QPL Part Number
    2N7585U2A
  • RDS (on) (@25°C) max
    40 mΩ
  • SEE
    Yes
  • TID max
    100 Krad(Si)
  • VBRDSS min
    250 V
  • VF max
    1.2 V
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SupIR-SMD
  • Polarity
    N
  • Generation
    R6
  • Die Size
    6
  • Qualification
    QIRL
  • Configuration
    Discrete
OPN
产品状态
英飞凌封装名称
封装名
包装尺寸
包装类型
湿度
防潮包装
无铅
无卤素
符合RoHS标准
Infineon stock last updated:

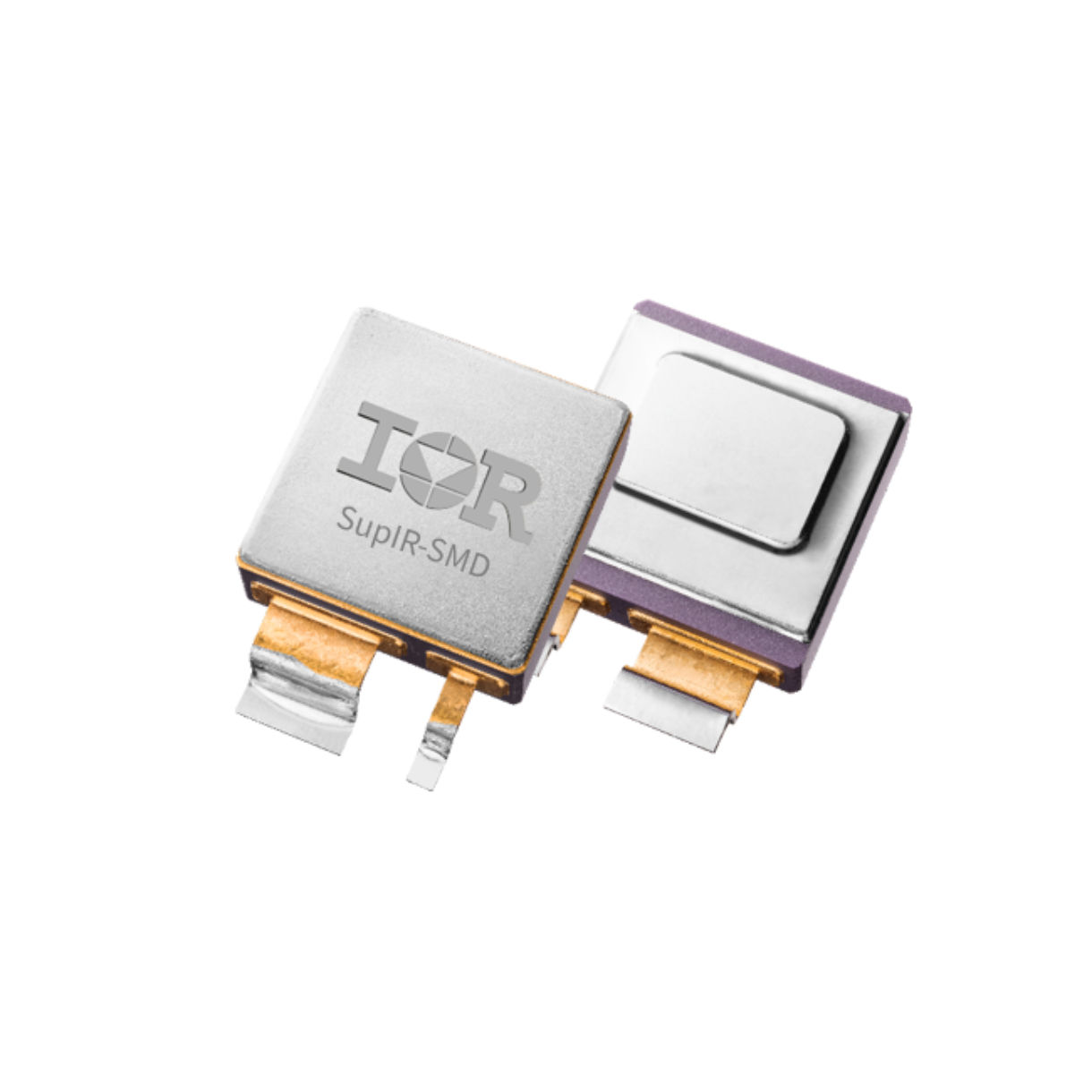

IRHNS67264SCS R6 N 沟道 MOSFET 非常适合空间应用。它具有抗辐射设计,可承受 250V 和 50A。SupIR-SMD 封装可确保高性能功率、低 RDS(on) 和低栅极电荷,使其非常适合 DC-DC 转换器和电机控制器。它还具有高达 100krad(Si) TID 和 QIRL 分类的优异电气性能。
