IRS2807DS

600 V 高侧和低侧栅极驱动器 IC
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2807DS
IRS2807DS
每件.

商品详情

  • VBS UVLO (On)
    8.9 V
  • VBS UVLO (Off)
    7.7 V
  • Turn On Propagation Delay
    515 ns
  • Voltage Class
    600 V
  • Qualification
    Industrial
  • Input Vcc min
    10 V
  • Output Current (Sink)
    0.35 A
  • Output Current (Source)
    0.2 A
  • Channels
    2
  • Configuration
    High-side and low-side
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
OPN
IRS2807DSTRPBF
产品状态 active
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
600 V 高侧和低侧栅极驱动器 IC,采用 SOIC-8 封装,典型值为 0.2 A 拉电流和 0.35 A 灌电流。

特性

  • 用于自举操作的浮动通道。
  • 完全可操作至 +600 V
  • 集成自举二极管
  • 可耐受负电压。瞬态电压。
  • dV/dt 免疫
  • 栅极驱动电源:10 V 至 20 V
  • 独立欠压锁定
  • 3.3,5、& 15 V 输入逻辑兼容。
  • 匹配的道具。两个通道均延迟。
  • 较低 di/dt 栅极驱动器
  • 输出与输入同相
  • 适用于梯形和正弦

应用

图表

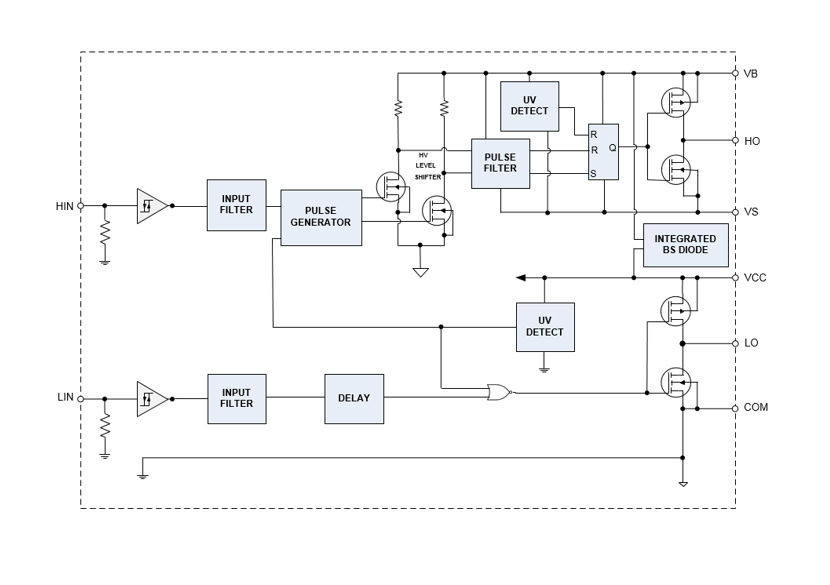

circuit_diagram_IRS28x7DS
