T3800N18TOF VT

1800V相控晶闸管片
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T3800N18TOF VT
T3800N18TOF VT
每件.

商品详情

  • ITAVM/TC [A/°C] (@180° el sin)
    3800/85
  • ITAVM
    3800 (180° el sin)
  • ITSM [A] (@10ms, Tvj max)
    53000
  • ITSM
    53000 A
  • RthJC [K/kW] (@180° el sin) max
    8.5
  • tq [µs]
    250
  • Tvj [°C] max
    135
  • VDRM / VRRM [V]
    1800
  • VDRM/ VRRM (V)
    1800 V
  • VT/IT [V/kA]
    1.28/6.0 (@Tvj max)
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    14045
  • Clamping force [kn]
    42 to 95
  • Housing

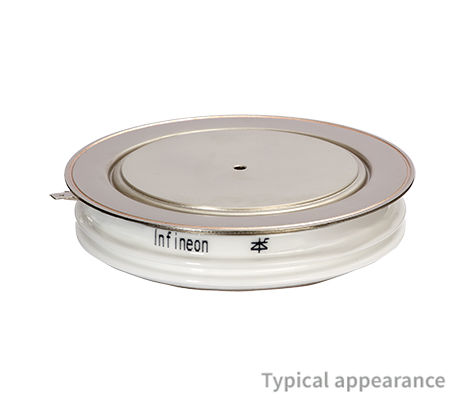

    Disc dia 111mm height 26mm / Ceramic
  • Configuration
    Electrical Triggered Phase Control Thyristor
OPN
T3800N18TOFVTXPSA1
产品状态 active and preferred
英飞凌封装名称 BG-T11126K-1
封装名 N/A
包装尺寸 2
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 BG-T11126K-1
封装名 -
包装尺寸 2
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
相控晶闸管 1800 V、3800 A,直径 111 毫米,高度 26 毫米,装配在高可靠性、坚固且密封的陶瓷外壳中。T3800N 主电源盘针对 UPS 旁路应用进行了专门优化,并提供了市场上最高的电流能力。

特性

  • 完全阻断能力 50/60 Hz
  • 高直流阻断稳定性
  • 高浪涌电流能力
  • 最高结温 135° C
