现货,推荐
符合RoHS标准
无铅

TDA38813

具有 FAST COT 控制、可调电流限制和电压跟踪的 12A 同步降压调节器
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TDA38813
TDA38813
每件.

商品详情

  • Iout max
    12 A
  • Product Category
    Analog
  • Additional Information
    Vref = 0.6V +/- 0.5%
  • Internal Bias LDO
    Yes
  • Accuracy
    0.5 %

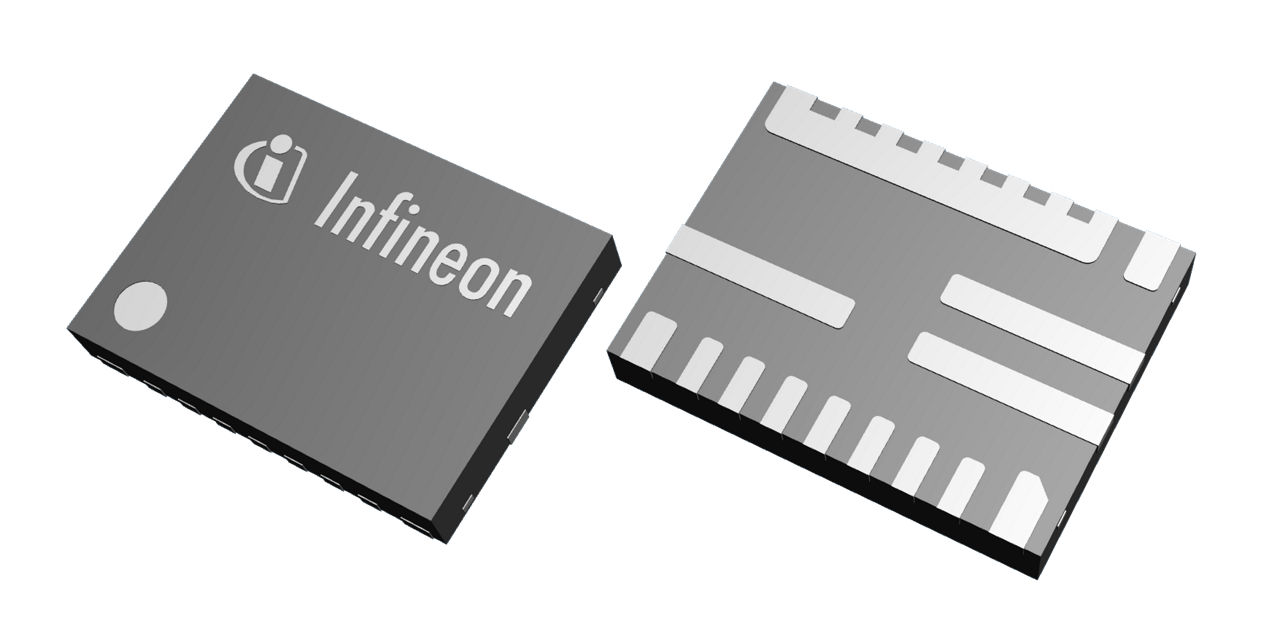

  • Package
    PG-TSNP-21-1
  • Industrial 24V Input
    No
  • Operating Temperature
    -40 °C to 125 °C
  • Switching Frequency
    600 kHz to 1000 kHz
  • Technology
    FAST Constant On Time
  • Topology
    Buck
  • Moisture Sensitivity Level
    2
  • Type
    Single phase
  • Family
    Analog DC-DC Voltage regulator
  • Qualification
    Industrial
  • Design Tool
    Tina Model
  • Regulator Type
    Single Output
  • Input Voltage
    2.7 V to 16 V
  • Output Voltage
    0.9 V to 5.5 V
  • Number of Outputs
    1
  • Over Voltage Protection
    Yes
  • Early Warning
    No
OPN
TDA38813XUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
TDA38813 是一款 12 A 完全集成且高效的 DC-DC 降压调节器。它采用快速恒定导通时间 (COT) 控制方案,简化了设计工作并实现了快速瞬态响应,同时保持了出色的线路和负载调节。它可以使用外部偏置电源在很宽的输入电压范围(2.7 V 至 16 V)内运行。

特性

  • 宽输入电压范围
  • 无需外部补偿
  • 支持 FCCM 和 DEM 模式
  • 可编程 Fsw
  • 软启动
  • OCP 限制
  • 增强的保护功能

产品优势

  • 支持多样化的终端应用
  • 紧凑的设计
  • 无需外部元件
  • 轻载/满载下的效率
  • 坚固的设计和可靠性
