XMC4400-F100F256 BA

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XMC4400-F100F256 BA
XMC4400-F100F256 BA

商品详情

  • A/D Input Lines
    18
  • CAN Nodes
    2
  • CPU
    ARM Cortex-M4
  • DMA Channels
    8
  • DSP Functionality
    yes
  • EEPROM Emulation
    Yes
  • I/O Operation Voltages
    3.3 V
  • SRAM (incl. Cache)
    80 kByte
  • SRAM
    80 kByte
  • Serial I/O Interfaces
    4
  • Type of Serial I/O Interfaces
    I²C, I²S, SPI, UART
  • Additional Features
    USB, Ethernet 10/100 Mbit/s, HRPWM
  • Power Mode
    clock gating possible
  • External Bus Interface
    no
  • Type of Memory
    Flash
  • Timed I/O Pins
    32
  • Real Time Clock
    yes
  • Instruction Width ([bits])
    32/16
  • Oscillator Watchdog
    yes
  • Digital I/O Pins
    75
  • Secondary Core
    N/A
  • Floating Point Unit
    yes
  • Temperature
    -40 to 85°C
  • On-chip Clock Generation
    yes
  • On-chip Voltage Regulator
    yes
  • Watchdog Timer
    yes
  • Program Memory
    256 kByte
  • Family
    XMC4400
  • Touch/LED Matrix Control
    yes
  • Qualification
    Industrial
  • Flash
    256 kByte
  • Budgetary Price €/1k
    5.82
  • Frequency max
    120 MHz
OPN
XMC4400F100F256BAXQMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 540
包装类型 TRAY
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 540
包装类型 TRAY
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
XMC4400将英飞凌领先的外设套件与行业标准的 Arm® Cortex-M4® 相结合。 作为其主要功能之一,它提供了高分辨率的PWM单元,分辨率仅为150 ps。 这种独特的外设使其特别适合太阳能逆变器、SMPS 和不间断电源 (UPS) 等应用中的数字电源转换。XMC4400由英飞凌的集成开发平台DAVE ™ 3支持。

特性

  • ARM ® Cortex ® -M4 120MHz,DSP MAC 和 FPU
  • 8 通道 DMA + 用于 USB 和以太网的 DMA
  • USIC4ch [四路 SPI、SCI/UART、I²C、I²S、LIN]
  • 电源电压范围:3.13 – 3.63V
  • USB 2.0 全速移动接口
  • CPU频率:120MHz
  • 外设时钟:120 [MHZ]
  • eFlash:256kB,包括硬件 ECC
  • 80kB 静态随机存取存储器
  • 10/100 以太网 MAC(支持 IEEE 1588)
  • 2x CAN,64 MO

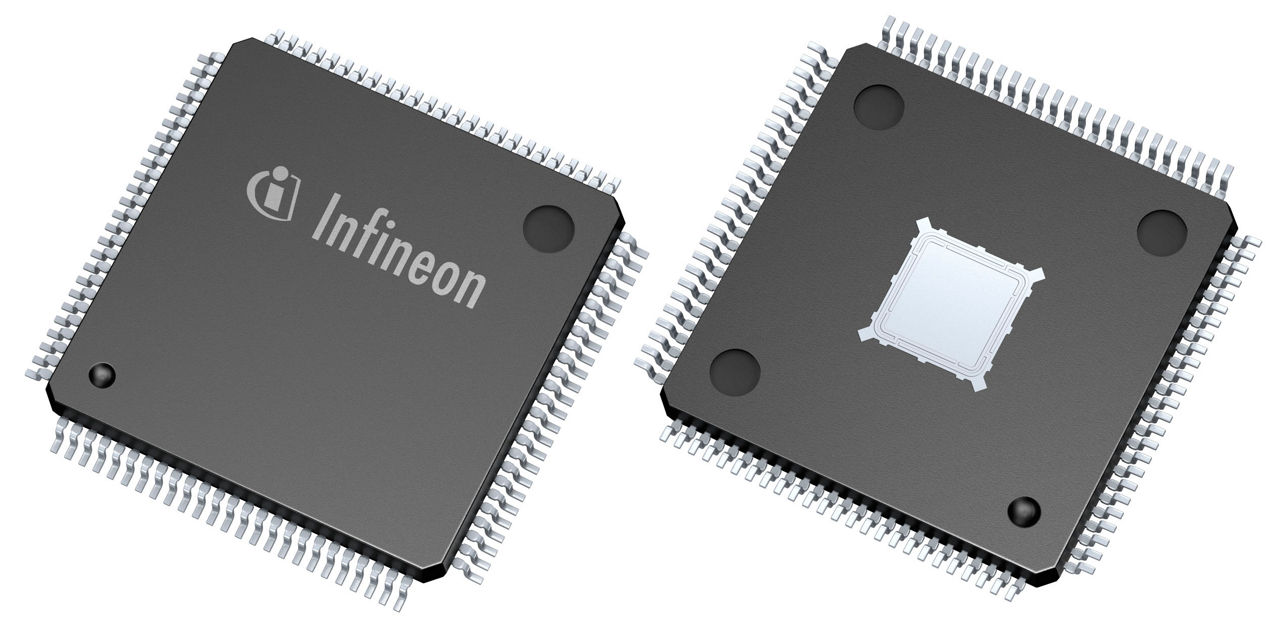

  • 封装:PG-LQFP-100
