EVAL-2ED2106

2ED2106S06F 评估板,650 V,0.7 A 高侧和低侧响应驱动器,带集成自举差分
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-2ED2106
EVAL-2ED2106
每件.

商品详情

  • Board Type
    Evaluation Board
  • Product Name
    EVAL-2ED2106
  • Topology
    Half Bridge
  • Description

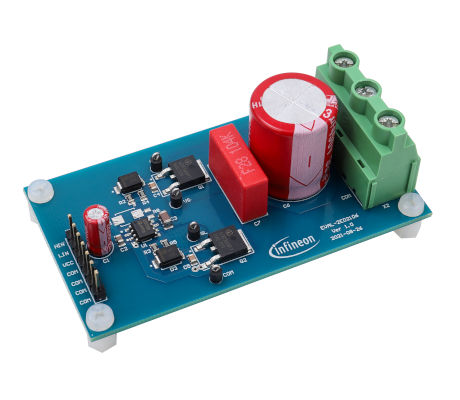

    Evaluation Board including driver IC 2ED2106S06F and two MOSFETs, IPD60R360P7, in half bridge configuration. This board is designed to test basic functionalities and highlight features of the Infineon silicon-on-insulator (SOI) gate driver
  • Target Application
    Switched mode power supplies (SMPS), Home Appliances, Motor Control & Drives
  • Family
    EiceDRIVER™ Gate Driver, CoolMOS™ MOSFET
  • Qualification
    Industrial
  • Input Type
    DC
OPN
EVAL2ED2106TOBO1
产品状态 active and preferred
英飞凌封装名称 --
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 N/A
防潮包装 DRY
无铅 No
无卤素 No
符合RoHS标准 No
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 -
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
EVAL-2ED2106配备电感驱动器IC、2ED2106S06F和两个MOSFET、IPD60R360P7,采用半桥配置。该板用于测试英飞凌绝缘体上硅片(SOI)电感驱动器的基本功能和突出特性。用户可以测试PWM输入输出性能,检查传播延迟、电流能力和高开关频率性能。该板可用于进行双脉冲测试。

特性

  • 工作电压高达 + 650 V
  • 采用英飞凌 SOI 技术
  • 100 V 的负电压与瞬态抗扰度
  • 集成低阻值自举故障
  • 专为自举操作而设计
  • 最大电源电压为 25 V
  • 欠压锁定(UVLO)
  • 200 ns传播延迟
  • VS 引脚上的逻辑操作电压高达 –11 V

产品优势

  • 降低 BOM 成本并节省空间
  • 听力损失降低 50%
  • 出色的强化性和抗噪性
