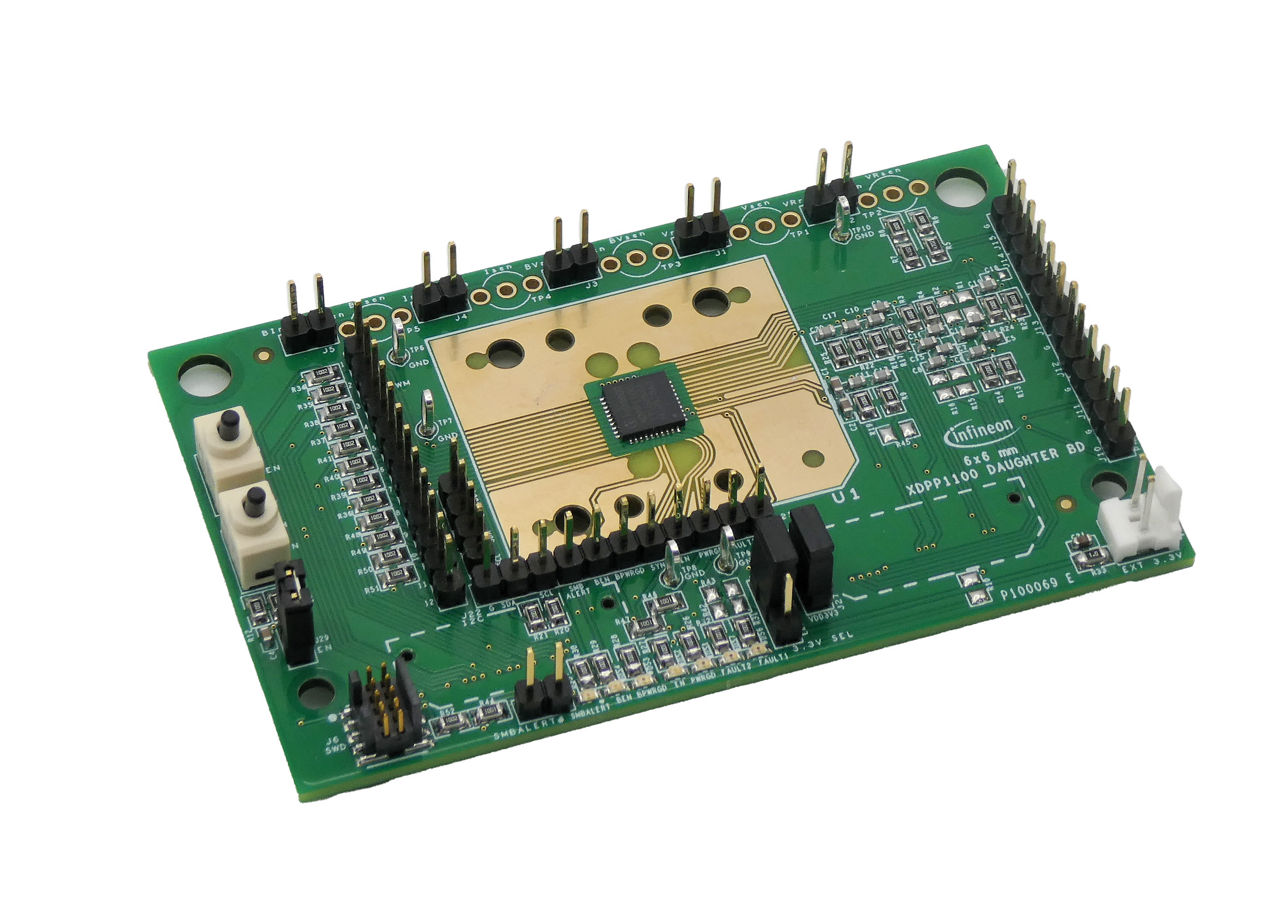

EVAL_XDPP1100_Q040_DB

Evaluation board for Infineon DC/DC digital IC controllers XDP™ XDPP1100-Q040
用户手册

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_XDPP1100_Q040_DB
EVAL_XDPP1100_Q040_DB
用户手册

商品详情

  • 主板类型
    Evaluation Board
  • 拓扑结构
    DC/DC
  • 接口
    I2C, PMBus, SWD
  • 描述
    Daughter board for Infineon DC/DC digital IC controllers XDPP1100-Q040
  • 目标应用程序
    Power Supplies
  • 系列
    Power Controller (PWM, PFC)
  • 认证标准
    Industrial
  • 输入类型
    DC
推荐的
OPN
EVALXDPP1100Q040DBTOBO1
产品状态 active and preferred
英飞凌封装名称 --
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 N/A
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
This evaluation board enables testing of XDP™ XDPP1100-Q040 digital controllers, featuring I2C and SWD debug interfaces with accessible test points for signal monitoring. It functions independently for firmware development or integrates with power boards such as EVAL_600W_FBFB_XDPP for full system evaluation. Configuration and monitoring require USB007A1 or USB007B dongle for XDPGUI interface.

特性

  • Digital controller for DC/DC converter
  • Configurable for multi mode/application
  • I2C & PMBus communication port
  • SWD connector for firmware debugging
  • Highspeed mezzanine connectors
  • Compatible w. Infineon EVAL power board
  • Ease of use with LED indicators

产品优势

  • Configurable with GUI
  • Allows FW based testing & debugging
  • Makes power board evaluation easy
  • All pins are accessible for testing
