HVBMS_BMU_ISOUART

Infineon’s Battery Management Unit (BMU) Reference Design accelerates the development and evaluation of high-voltage battery systems.
应用简介

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

HVBMS_BMU_ISOUART
HVBMS_BMU_ISOUART
应用简介


产品详情

  • 主板名称
    Reference Board
  • 产品名称
    HV BMS BMU ISOUART
  • 应用
    Automotive BMS
  • 接口
    Interfaces
  • 目标应用程序
    BMS, Automotive
  • 系列
    AURIX™, XENSIV™, OptiMOS ™etc
  • 质量等级
    Automotive
  • 输入类型
    DC

OPN
HVBMSBMUISOUARTTOBO1
产品状态 coming soon
英飞凌封装名称 --
封装名 N/A
封装尺寸 1
封装类型 CONTAINER
湿度 N/A
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 No

产品状态 coming soon
英飞凌封装名称 --
封装名 -
封装尺寸 1
封装类型 CONTAINER
湿度 -
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准
The Reference Design Kit features example implementations on the AURIX™ TC4x with its PPU hardware accelerator, supporting complex digital twin, AI-based, and hybrid cell models. This capability is crucial for maximizing performance, optimizing charging speeds, and enabling next-generation semi- and full-solid-state cell chemistry. Delivered with AURIX™ TC497N microcontroller module in SO-DIMM format

特性

  • Comprehensive Hardware Chipset
  • AURIX™ TC497N Control Board V1.2
  • Dual CAN communication interfaces
  • 5 smart mechanical contactor drivers
  • Thermal runaway detection
  • Isolated UART daisy-chain comm.
  • High-voltage interlock loop
  • Infineon GUI Designer
  • Equivalent Circuit Models
  • AI-based cell models
  • Model-based design software examples

产品优势

  • Plug-and-Play for Rapid Prototyping
  • Compatible CMU: TLE9018DQK
  • Compatible PMU: PSOC™ 4 HVPA SPM 1.0
  • Seamless communication with VCU
  • Cell sensing ICs
  • ISO 26262 ASIL-D compl. architecture
  • Integrated mech. contactor control

Bill of Material

文档

设计资源

图表

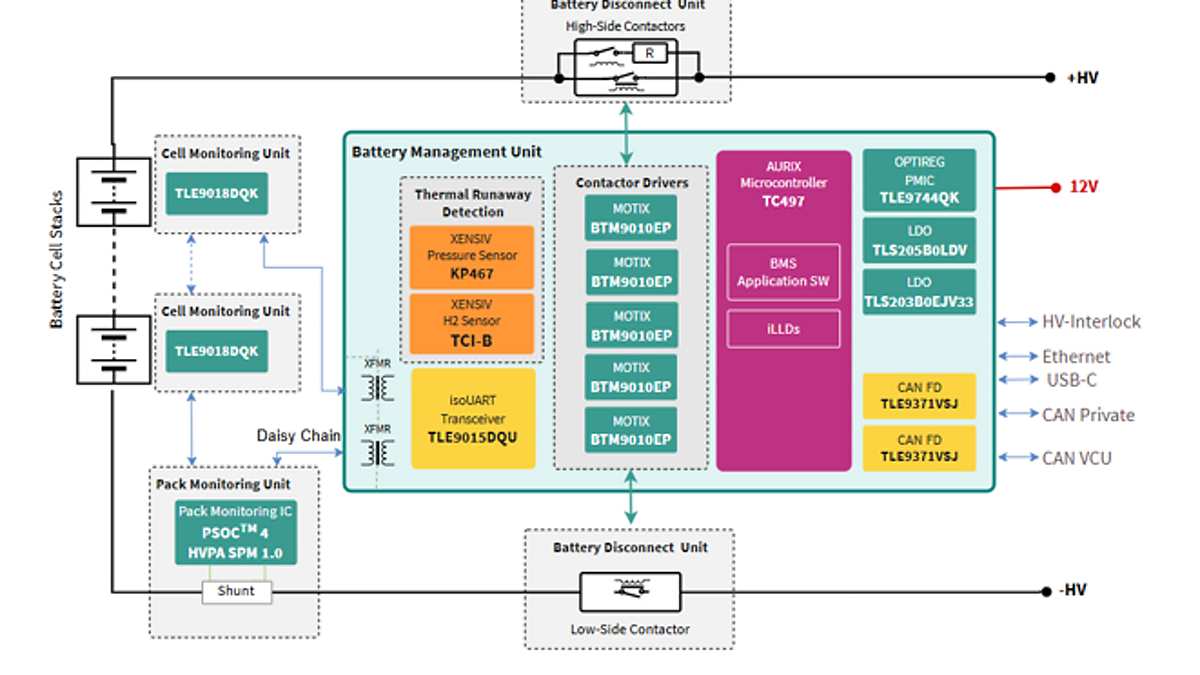

BMS HV BMU Block Diagram
BMS HV BMU Block Diagram
BMS HV BMU Block Diagram BMS HV BMU Block Diagram BMS HV BMU Block Diagram

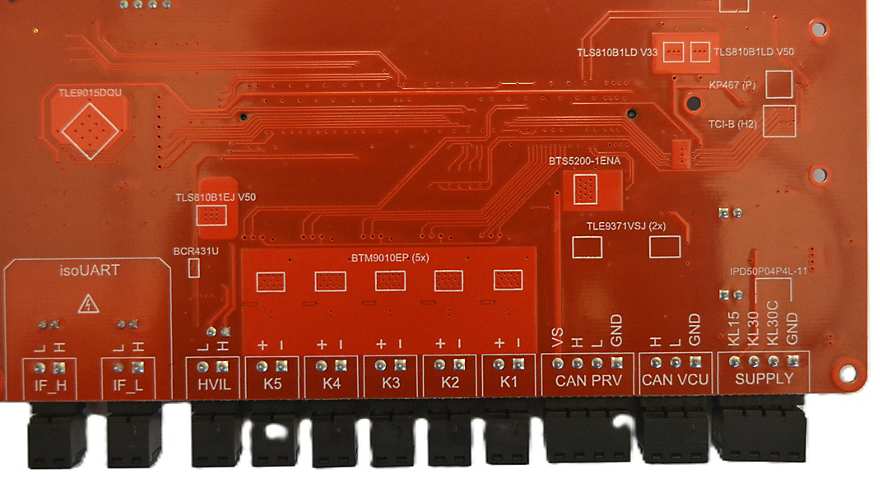

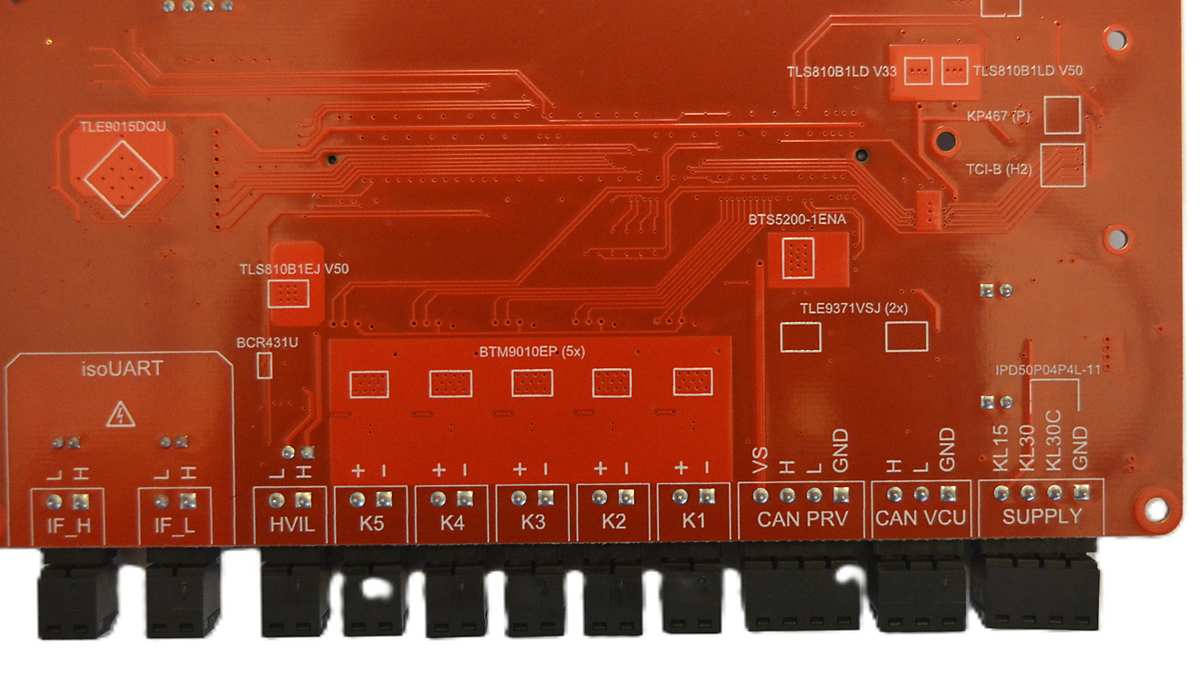

HVBMS_BMU_ISOUART Product Image Bottom HVBMS_BMU_ISOUART Product Image Bottom HVBMS_BMU_ISOUART Product Image Bottom

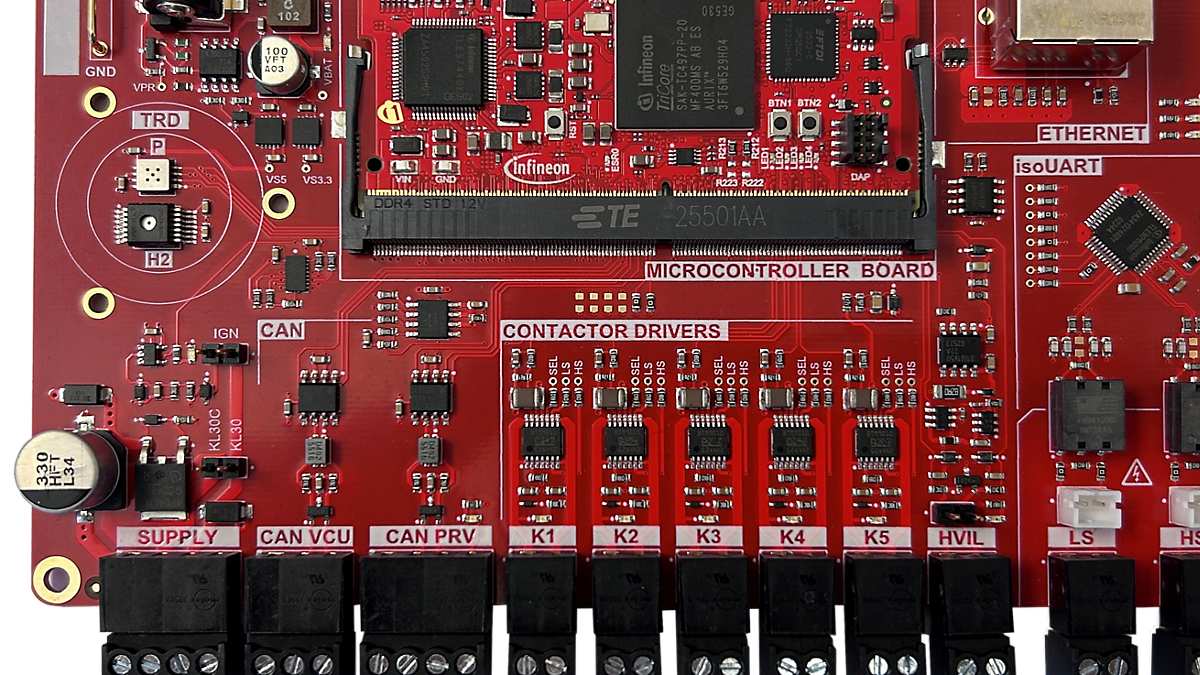

HVBMS_BMU_ISOUART Product Image HVBMS_BMU_ISOUART Product Image HVBMS_BMU_ISOUART Product Image
×
