KIT-PSC1M3-EVK
现货，推荐
符合RoHS标准

KIT-PSC1M3-EVK

PSOC™ Control C1 evaluation Kit

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT-PSC1M3-EVK
KIT-PSC1M3-EVK
  • CAPSENSE™
    No
  • CCM操作
    N/A
  • GPIO/扩展板兼容性
    N/A
  • 传感器
    N/A
  • 内核
    ARM Cortex M0
  • 器件
    PSC1M3FBLGQ0AT
  • 外部存储器
    None
  • 拓扑结构
    N/A
  • 描述
    KIT-PSC1M3-EVK allows to evaluate the features and capabilities of Infineon's PSOC™ Control C1 MCU family. It offers access to all IO pins allowing evaluation of almost all capabilities of the MCU. The board comes with on-board debugger, integrated LED's and a potentiometer. Software development is supported via multiple code examples in Infineon's ModusToolbox™ software.
  • 特性
    Debug_LED,COM_LED,Status LED
  • 目标应用程序
    Motor Control, Power Tools, Light Electric Vehicles
  • 系列
    PSOC Control C1
  • 编程器/调试器
    JLINK debugger
  • 蓝牙标准
    N/A
  • 认证标准
    Industrial
  • 软件支持
    ModusToolbox
  • 软件生态系统
    ModusToolbox
  • 输入类型
    DC
  • 连接
    N/A
推荐的
OPN
KITPSC1M3EVKTOBO1
产品状态 active and preferred
英飞凌封装名称 LG-MADK-1
封装名 N/A
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes

产品状态
Active
英飞凌封装名称 LG-MADK-1
封装名 -
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准
KIT-PSC1M3-EVK allows to evaluate the features and capabilities of Infineon's PSOC™ Control C1 MCU family. It offers access to all IO pins allowing evaluation of almost all capabilities of the MCU. The board comes with on-board debugger, integrated LED's and a potentiometer. Software development is supported via multiple code examples in Infineon's ModusToolbox™ software.

特性

  • Onboard programmer/debugger (J-Link)
  • PSC1M3FBLGQ0AT
  • Type-C USB interface for power and debug
  • User LEDs, buttons and potentiometers
  • CAN interface header

产品优势

  • Quickly start evaluation of PSC1
  • Easy evaluation with only USB required
  • Expansion headers to add hardware
  • Full software ecosystem ModusToolbox

Bill of Material

文档

设计资源

图表

kit-psc1m3-evk-connected
kit-psc1m3-evk-connected
kit-psc1m3-evk-connected kit-psc1m3-evk-connected kit-psc1m3-evk-connected

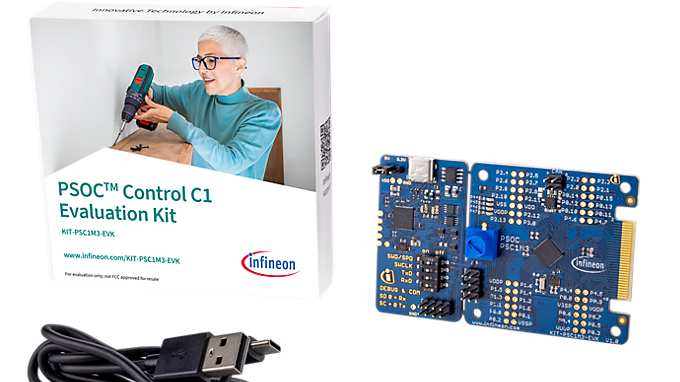

kit-psc1m3-evk-kit-contents kit-psc1m3-evk-kit-contents kit-psc1m3-evk-kit-contents
kit-psc1m3-evk-and-motor-control-card kit-psc1m3-evk-and-motor-control-card kit-psc1m3-evk-and-motor-control-card
×
