REF_6KW_XDP712

Reference board for XDP™ Hot-swap controller XDP712-001 for AI server & data center applications
User manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_6KW_XDP712
REF_6KW_XDP712
User manual


产品详情

  • Pout 范围
    0 W 至 6000 W
  • 主板类型
    Evaluation Board
  • 供电电压 范围
    8 V 至 100 V
  • 子应用程序
    Data Processing
  • 安装
    Stand Offs
  • 尺寸
    100mm x 110mm
  • 拓扑结构
    XDP712-001
  • 接口
    PMBus®
  • 目标应用程序
    Data center power solutions, Server power path protection
  • 系列
    XDP™ Protection ICs
  • 质量等级
    Industrial
  • 输入类型
    DC
  • 输出电压 范围
    40 V 至 60 V
  • 输出电流 范围
    0 A 至 150 A

OPN
REF6KWXDP712TOBO1
产品状态 coming soon
英飞凌封装名称 --
封装名 N/A
封装尺寸 1
封装类型 CONTAINER
湿度 N/A
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 No

产品状态 coming soon
英飞凌封装名称 --
封装名 -
封装尺寸 1
封装类型 CONTAINER
湿度 -
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准

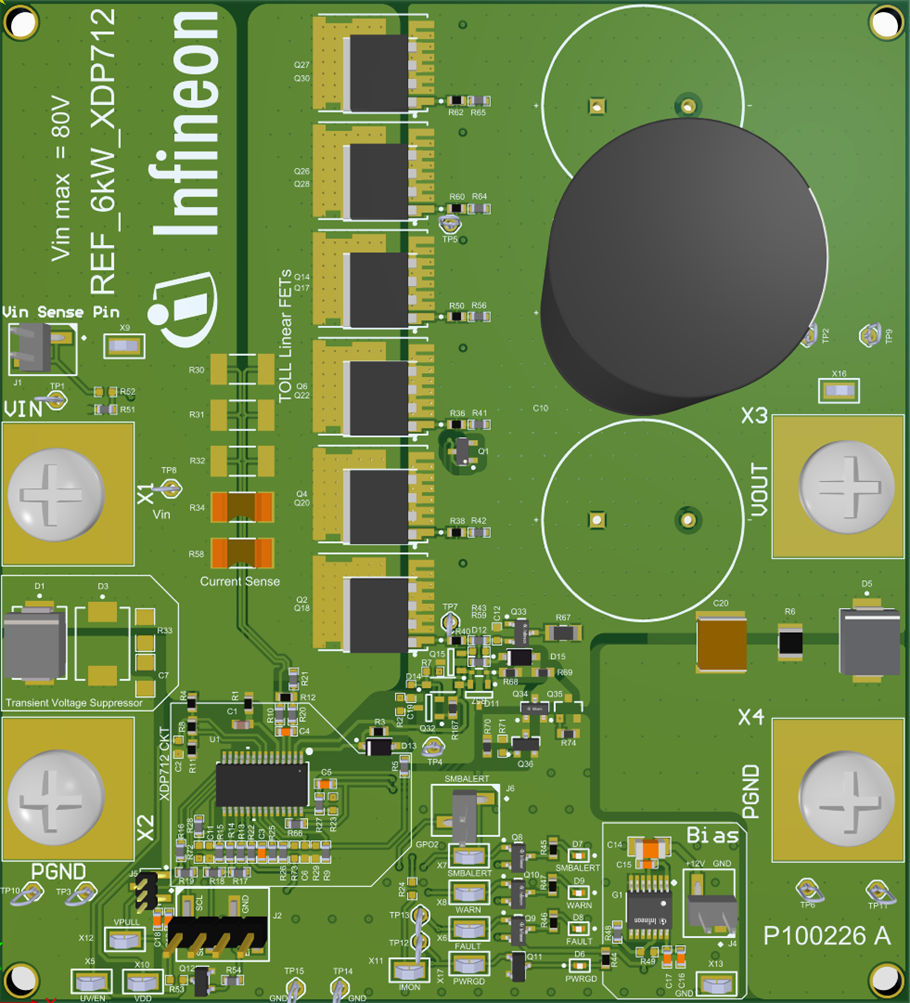

This reference design features the XDP712-001 hot-swap controller to provide a proven solution for managing power path protection of 48 V (AI) server and data center applications. It delivers up to 6 kW of power and provides inrush current control as well as SOA and comprehensive fault protection along with system telemetry and monitoring.

特性

  • Features XDP712-001 hot-swap controller
  • Input voltage range of 40 V - 60 V
  • Target power of 6 kW
  • Inrush current control & SOA protection
  • Comprehensive fault protection
  • System monitoring & telemetry via PMBus®

产品优势

  • Easy to modify for different power needs
  • Allows for full hot-swap validation
  • Easy to design into the system
  • TOLL and mTOLL FET footprints
  • Expandable to 8kW
