TLE9893-2QK EVALKIT
现货，推荐

TLE9893-2QK EVALKIT

MOTIX ™ MCU TLE9893-2QK 评估套件，带 CAN-FD，用于 BLDC 电机控制
User manual
评估板
Video

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9893-2QK EVALKIT
TLE9893-2QK EVALKIT
User manual


产品详情

  • 主板类型
    Evaluation Board
  • 产品类别
    Evaluation Board
  • 供电电压 范围
    6 V 至 28 V
  • 子应用程序
    Engine cooling fan, Sensor-less and sensor-based BLDC motor application, High efficiency pumps and fans, Water pump, HVAC blower, Fuel pump, Oil pump
  • 拓扑
    3-Phase Motor, B6 Bridge
  • 目标应用程序
    Automotive, Motor Control & Drives
  • 系列
    Motor Driver, Microcontroller, MOTIX™ MCU | 32-bit motor control SoC
  • 质量等级
    Automotive
  • 输入类型
    DC
  • 输出电压 范围
    6 V 至 28 V

推荐的
OPN
TLE98932QKEVALKITTOBO1
产品状态 active and preferred
英飞凌封装名称 N/A
封装名 N/A
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 No
封装产地
DE
晶圆产地
DE

产品状态
Active
英飞凌封装名称 N/A
封装名 -
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准
封装产地
DE
晶圆产地
DE
TLE9893-2QK 评估套件旨在对 TLE9893-2QKW62S 的所有功能和外围设备进行全面评估。该套件可通过 B6 桥配置中的 MOSFET 直接连接到无刷直流电机。作为一款超级设备，TLE9893-2QKW62S 具备 MOTIX ™ TLE989x 系列的所有功能，是评估这些设备提供的全部功能和特性的理想选择。

特性

  • 三个 MOSFET 半桥
  • 板载连接器
  • PI 过滤器
  • 反极性保护
  • CAN-FD连接器
  • CAN-FD 终端选项
  • 按下 MON1 按钮并重置引脚
  • 用于供电电压的 LED
  • SEGGER J-Link 板载调试器
  • 文档包括：
    • 用户指南
    • 原理图和布局文件

应用

Bill of Material

文档

设计资源

Videos

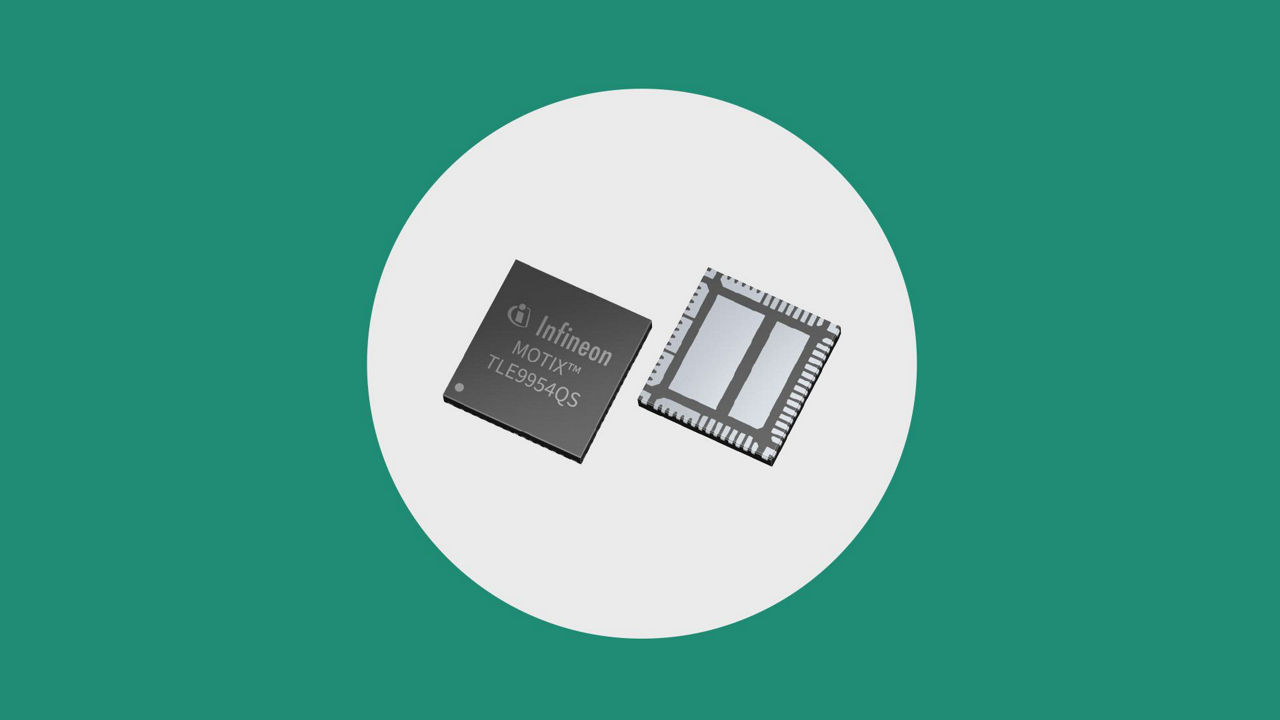

Brushless DC (BLDC) motor control design up to 150 W @ 12 V, smaller than a postage stamp
Looking for a compact, fully integrated BLDC motor controller? The MOTIX™ TLE9954QSW40-33 System-in-Package (SiP) integrates all components required for smart brushless DC motor control in applications up to 150 W at 12 V. Discover how our ultra-compact reference design helps reduce system complexity, save PCB space, and accelerate time-to-market with a comprehensive development ecosystem.
Brushless DC (BLDC) motor control design up to 150 W @ 12 V, smaller than a postage stamp Brushless DC (BLDC) motor control design up to 150 W @ 12 V, smaller than a postage stamp Brushless DC (BLDC) motor control design up to 150 W @ 12 V, smaller than a postage stamp
How to get started with the MOTIX™ MCU TLE9893 Evaluation Kit How to get started with the MOTIX™ MCU TLE9893 Evaluation Kit How to get started with the MOTIX™ MCU TLE9893 Evaluation Kit
How to get started with the MOTIX™ MCU TLE9893 Evaluation Kit How to get started with the MOTIX™ MCU TLE9893 Evaluation Kit How to get started with the MOTIX™ MCU TLE9893 Evaluation Kit
×
