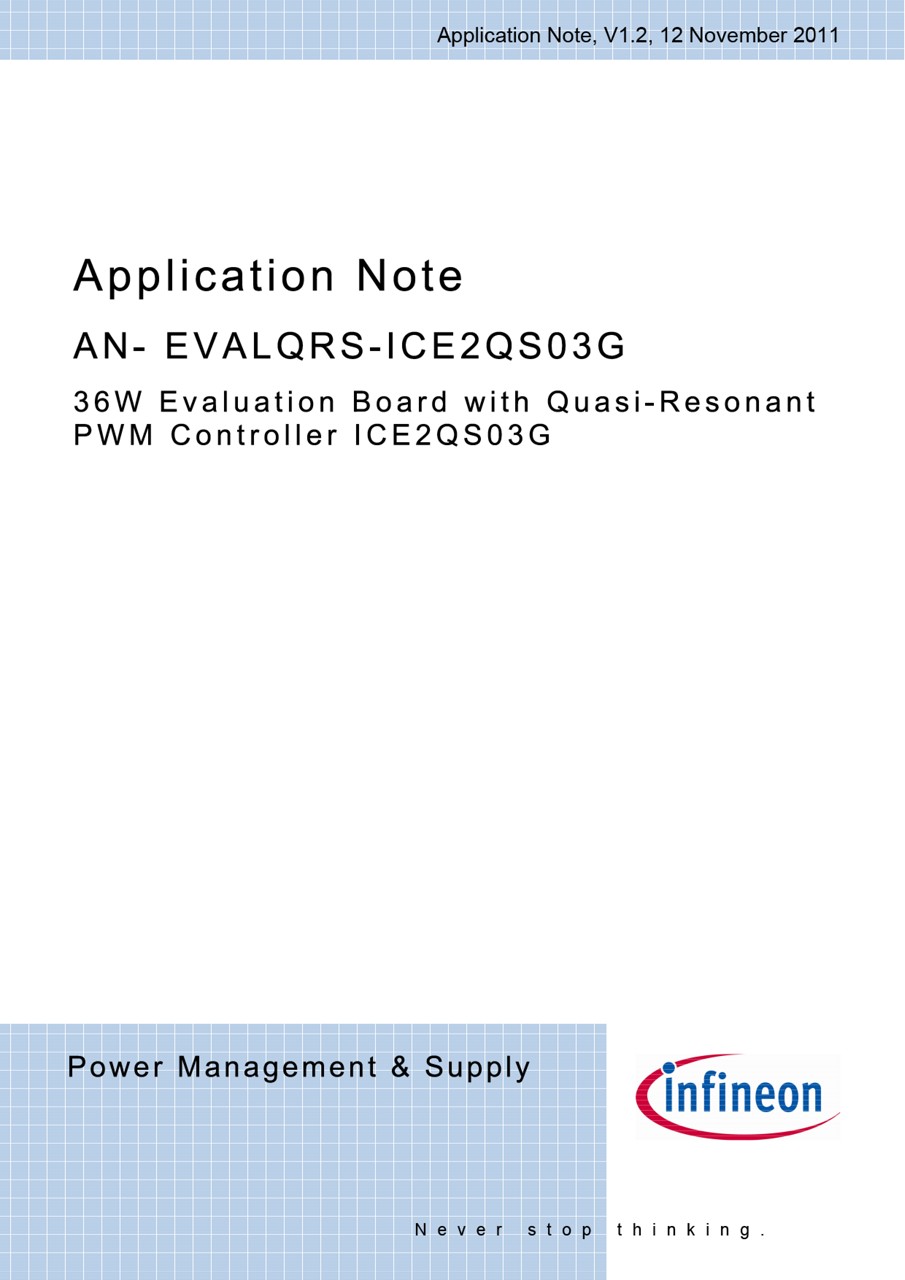

36W evaluation board using ICE2QS03G

The demo-board described here is a 36W power supply using quasi-resonant flyback converter topology. The PWM controller ICE2QS03G is a second generation quasi-resonant controller IC developed by Infineon Technologies. The typical applications are for TV-sets, DVD-players, Set-top boxes, netbook adapters, home audio and printer applications. In normal operation, the digital frequency reduction with decreasing load enables a quasi-resonant operation till very low load. As a result, the system efficiency over the entire load range is significantly improved compared to conventional free running quasi resonant converter implemented with only maximum switching frequency limitation.

•
8.04 MB
•
12/11/2011
