EiceDRIVER™ - IGBT Driver for medium and high power IGBT Modules

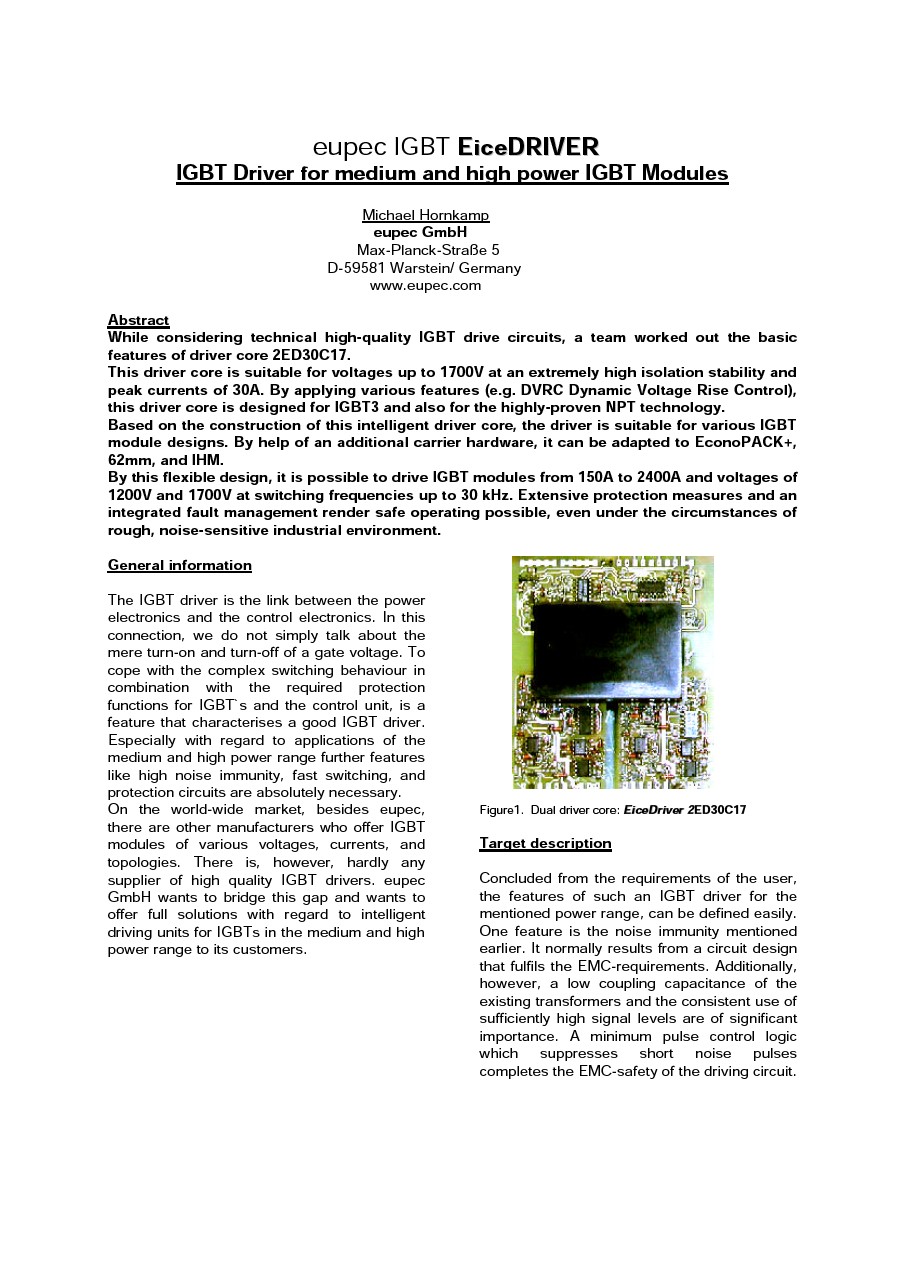

While considering technical high-quality IGBT drive circuits, a team worked out the basic features of driver core 2ED30C17. This driver core is suitable for voltages up to 1700V at an extremely high isolation stability and peak currents of 30A. By applying various features (e.g. DVRC Dynamic Voltage Rise Control), this driver core is designed for IGBT3 and also for the highly-proven NPT technology. Based on the construction of this intelligent driver core, the driver is suitable for various IGBT module designs. By help of an additional carrier hardware, it can be adapted to EconoPACK+, 62mm, and IHM. By this flexible design, it is possible to drive IGBT modules from 150A to 2400A and voltages of 1200V and 1700V at switching frequencies up to 30 kHz. Extensive protection measures and an integrated fault management render safe operating possible, even under the circumstances of rough, noise-sensitive industrial environment.

•
