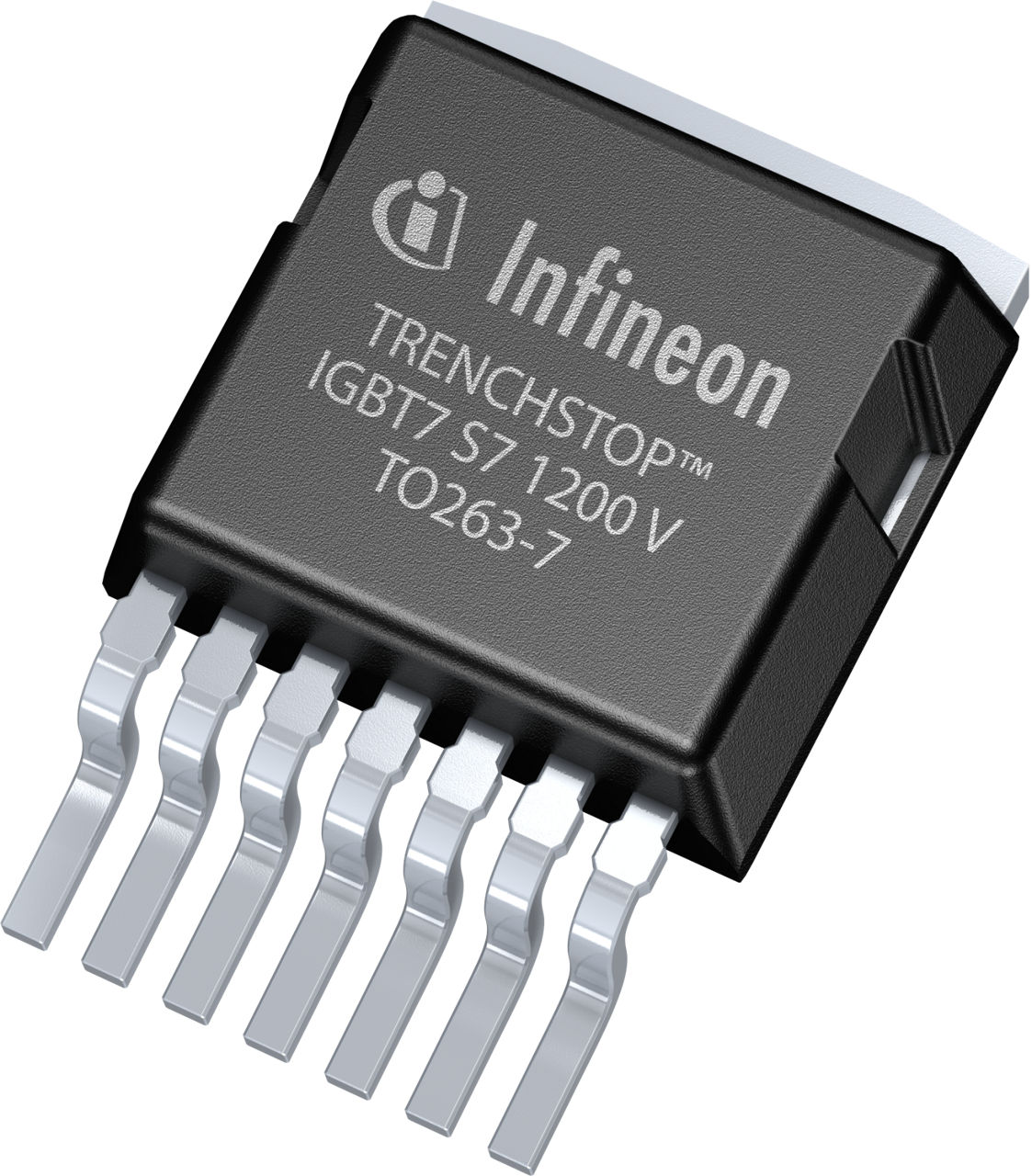

AIGBG15N120S7

新品
Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology
数据手册
封装
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AIGBG15N120S7
AIGBG15N120S7
每件.
数据手册

商品详情

  • Eon min
    0.24 mJ
  • IC (@ 100°) max
    23 A
  • IC (@ 100°) max
    23 A
  • IC (@ 25°) max
    33 A
  • ICpuls max
    45 A
  • Ptot max
    176 W
  • QGate max
    93 nC
  • td(off) max
    160.7 ns
  • td(on) min
    0.24 ns
  • tr max
    5.9 ns
  • VCE(sat) min
    1.65 V
  • VCE max
    1200 V
  • 封装
    PG-TO263-7-U01, D2PAK (TO-263-7)
  • 技术
    TRENCHSTOP™ IGBT 7
推荐的
OPN
AIGBG15N120S7ATMA1
产品状态 active and preferred
英飞凌封装名称
PG-TO263-7
封装名 D2PAK 7-pin
包装尺寸 1000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
 每件. 有存货

产品状态
Active
英飞凌封装名称
PG-TO263-7
封装名 D2PAK 7-pin
包装尺寸 1000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
1200 V TRENCHSTOP ™ IGBT7 S7 portfolio is the optimal choice for automotive auxiliary drive applications

特性

  • Low saturation voltage VCE(sat) = 2.0 V at Tvj=175 °C
  • Wide range of dv/dt controllability
  • 4 µsec short circuit robustness and humidity robustness
  • Single IGBT
  • Higher pulse current 3xInom capability
  • Very good performance at low - mid switching frequency range (8-16kHz)
  • Higher power density
  • Automotive qualification

产品优势

  • Ideal for high voltage auxiliary drive applications and 800 V OBC
  • Simple and lower cost gate driver circuit design
  • Improved thermal performance and reduced cooling efforts
  • Easier assembly & reduced system cost through high creepage distance
  • 15A and 25A versions to address exact customer requirements
