BGT60CUTR13AIP

新品
Next-generation, ultra-low-power XENSIV™ 60 GHz CMOS radar with integrated processing for IoT applications
数据手册

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGT60CUTR13AIP
BGT60CUTR13AIP
数据手册

商品详情

  • Bootloader
    yes
  • Deep Sleep Power Consumption
    0.1 mW
  • Embedded Motion / Presence
    yes
  • Embedded Power Management
    yes
  • Embedded Processing
    Integrated hardware accelerator (HWA) for autonomous presence detection and on-chip radar pre-processing
  • FoV (HPBW)
    150
  • Low-Power Sensing Mode
    less than 1 mW
  • Rx天线数量
    3
  • Tx Output Power
    11 dBm (conducted power at pad)
  • Tx天线数量
    1
  • 供电电压
    1.2 V, 1.8 V
  • 到达角度
    yes
  • 天线
    Antennas in package
  • 最大检测范围
    20 m
  • 最小检测范围
    0.025 m
  • 温度范围
    -20 to +85 °C
  • 目标应用程序
    Smart home, Smart building, Security devices, Wearables, Robotics, Healthcare devices
  • 系列
    XENSIV™ 60GHz CMOS Radar Sensors
  • 范围
    yes
  • 认证标准
    Industrial (JEDEC47/20/22)
  • 速度[m/s]
    yes
  • 频率
    57 GHz to 64 GHz
OPN
BGT60CUTR13AIPXUMA1
产品状态 coming soon
英飞凌封装名称 PG-VF2BGA-38
封装名 N/A
包装尺寸 5000
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 coming soon
英飞凌封装名称 PG-VF2BGA-38
封装名 -
包装尺寸 5000
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
The BGT60CUTR13AIP is a 60 GHz FMCW radar sensor with Antennas-in-Package (AIP) in an L-shaped array, optimized for ultra-low-power IoT devices. It features integrated processing via a hardware accelerator (HWA), as well as supporting blocks for an optimized system architecture. With an integrated bootloader, it enables autonomous presence detection. The MMIC is configured via SPI, allowing for easy integration into various applications.

特性

  • Integrated hardware accelerator (HWA)
  • Bootloader for autonomous mode
  • High bandwidth of 7 GHz
  • Ultra-low power mode, less than 200 µW
  • More than 20 m detection range
  • Antennas-in-Package (AIP)
  • 6.05 x 4.3 x 0.9 mm³ package size

产品优势

  • Robust presence and motion detection
  • Optimized for battery powered devices
  • On-chip processing via HWA
  • Autonomous system wake-up
  • Designed for optimized system cost

图表

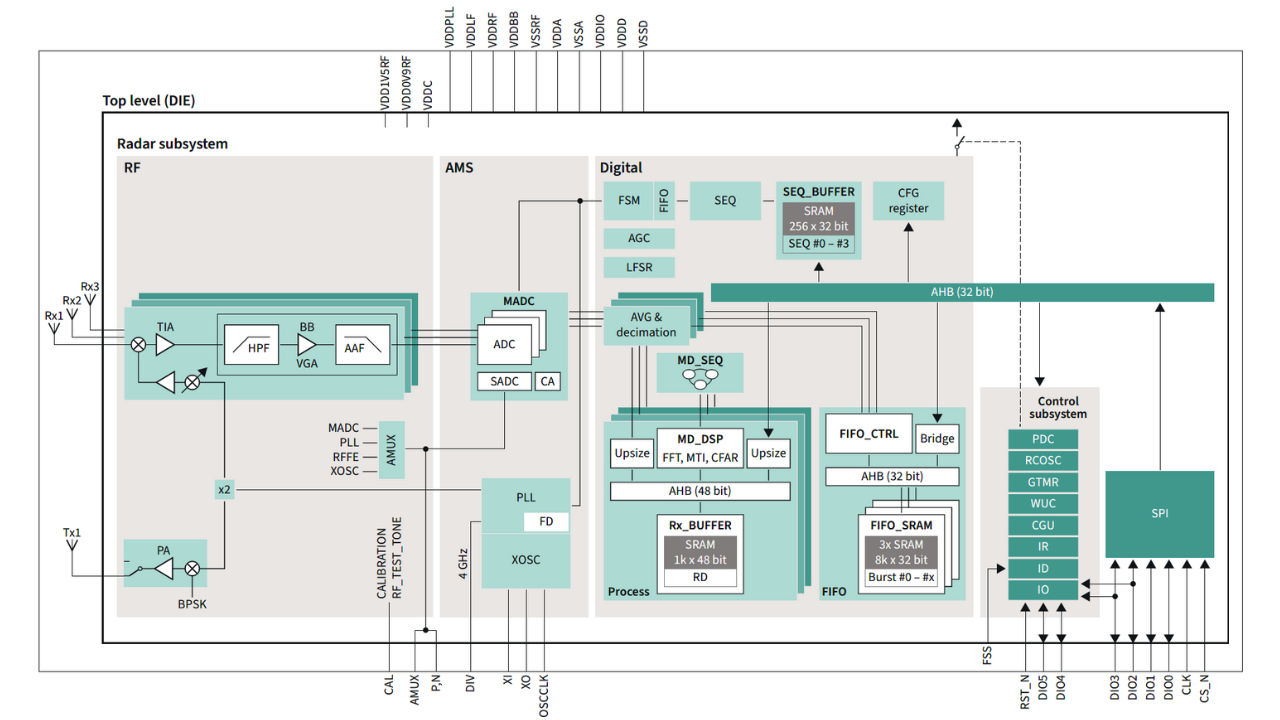

Block Diagram: BGT60CUTR13AIP
Block Diagram: BGT60CUTR13AIP
Block Diagram: BGT60CUTR13AIP Block Diagram: BGT60CUTR13AIP Block Diagram: BGT60CUTR13AIP
×
