BTS7200-4EPA

12 V | 66.5mΩ | 1A | 4 通道智能高侧电源开关 | 模拟电流检测 | 车身控制应用
数据手册
封装
评估板
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS7200-4EPA
BTS7200-4EPA
每件.
数据手册

商品详情

  • IL (Short Circuit Current)
    10 A
  • IL Nominal Current (@ TA = 85°C)
    1 A
  • RDS (on) (@ Tj = 25°C)
    66.5 mΩ
  • RDS (on) (@ Tj = 150°C) max
    120 mΩ
  • toff (Turn OFF time) max
    100 µs
  • ton (Turn ON time) max
    110 µs
  • Classification
    ISO 26262-ready
  • Mounting
    SMT
  • Operating Temperature
    -40 °C to 150 °C
  • Recommended Operating Voltage
    3.1 V to 28 V
  • Undervoltage Recovery Delay
    Yes
  • Nominal Load Current per channel (All channels active)
    1 A
  • Current Limit
    7.3 A to 10 A
  • Currently planned availability until at least
    2038
  • Family
    PROFET™ +2 12V
  • Qualification
    Automotive
  • Certifications
    ISO 26262-ready
  • Diagnostics
    Sense
  • Load Current
    1 A
  • Channels
    4
受到推崇的
OPN
BTS72004EPAXUMA1
产品状态 active and preferred
英飞凌封装名称
PG-TSDSO-14
封装名 N/A
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2a
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
 每件. 有存货

产品状态
Active
英飞凌封装名称
PG-TSDSO-14
封装名 -
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2a
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
BTS7200-4EPA 是一款智能高端电源开关，提供保护功能和诊断。该设备集成了SMART7技术。

特性

  • High-Side Switch with Diagnosis&Embedded
  • Part of PROFET™+2 12V Family
  • Switch ON capability while(Inverse ON)
  • Green Product (RoHS compliant)
  • Temp Limitation with Controlled Restart
  • Overcurrent protect with Restart Control
  • Undervoltage shutdown
  • OverV protection with extern components
  • Proportional Current Sense
  • Open Load in ON and OFF state
  • Short circuit to ground and battery

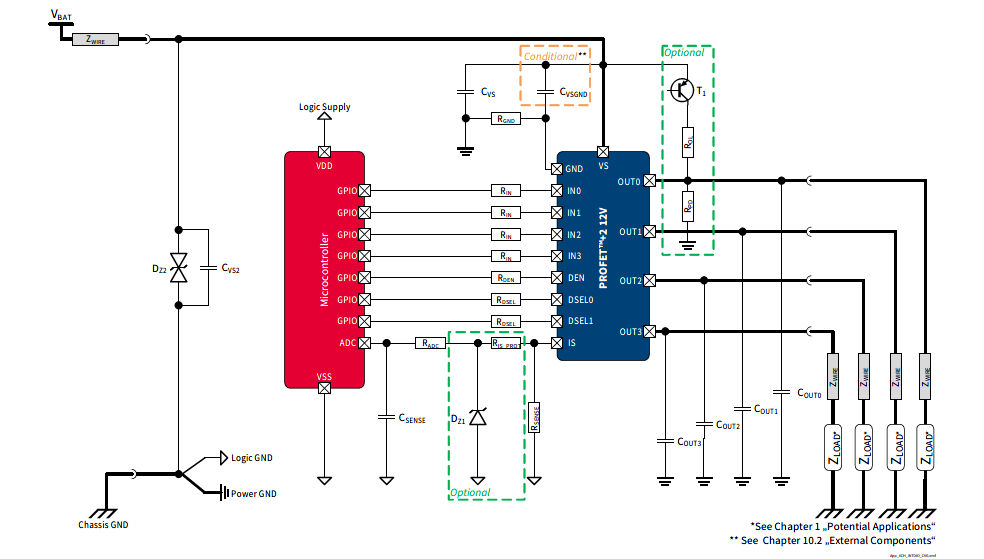

图表

BTS7200-4EPA_Diagram
BTS7200-4EPA_Diagram
BTS7200-4EPA_Diagram BTS7200-4EPA_Diagram BTS7200-4EPA_Diagram
×
