CYW20822-P4TAI040

封装
评估板
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

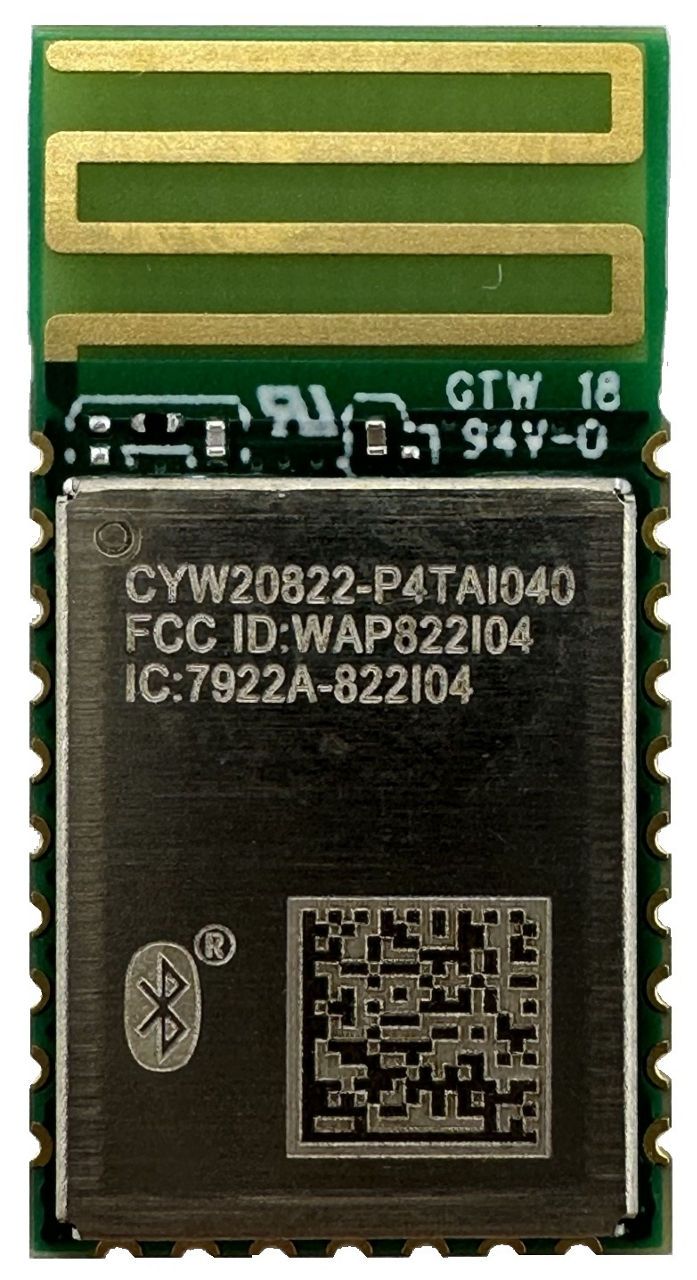

CYW20822-P4TAI040
CYW20822-P4TAI040
每件.

商品详情

  • Longevity - 15 years
    Yes
  • ADC (#, Max. Resolution @ Sample Rate)
    3, 10-bit ADC@2M Samples/s
  • CAPSENSE™
    N/A
  • CPU Core
    16 MHz 32-bit ARM® Cortex® M0
  • GPIOs
    12
  • I2C
    2
  • PDM
    Yes
  • PWM
    8
  • ROM
    256KB
  • SPI
    2
  • SRAM
    128 kByte
  • UART
    2
  • Serial Communication Blocks
    0
  • Main CPU Core
    16 MHz 32-bit ARM® Cortex® M0
  • Longevity - Extended
    No
  • Launch Date
    31-03-2024
  • Base Silicon
    CYW20822
  • Type of Antenna
    Trace Antenna
  • Size (X mm x Y mm x Z mm)
    20.2 mm x 10.5 mm x 2.3 mm
  • Operating Temperature
    -40 °C to 85 °C
  • Extended Range
    Yes
  • Pads
    27
  • VBAT
    3.3 V
  • Currently planned availability until at least
    31-03-2039
  • Family
    CYW20822
  • Bluetooth LE RX Sensitivity
    -101 dBm@125 kbps
  • Bluetooth LE TX Power
    4
  • Bluetooth LE Data rate
    2 MByte/s
  • Bluetooth LE
    5.0
  • Secondary CPU Core
    N/A
  • Operational Amplifier
    N/A
  • Flash
    1 MByte
受到推崇的
OPN
CYW20822P4TAI040XUMA1
产品状态 active and preferred
英飞凌封装名称
LG-MLGA-42
封装名 MODULE-42 (002-28053)
包装尺寸 500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
 每件. 有存货

产品状态
Active
英飞凌封装名称
LG-MLGA-42
封装名 MODULE-42 (002-28053)
包装尺寸 500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
The CYW20822–P4TAI040 module offers seamless integration, enhanced performance with Bluetooth® Low-Energy Long-Range (LE-LR) support, and exceptional reliability for a wide range of applications. With the right combination of low power and high performance, the module is designed to support the entire spectrum of Bluetooth® LE-LR use cases including Industrial IoT applications, Smart home, Asset tracking, Beacons and Sensors, and Healthcare devices.

特性

  • -101 dBm LE 灵敏度 @ 125 Kbps
  • 活动 RX @ 1 Mbps 和 -95 dBm：1.3 mA
  • 活动 TX @ 1 Mbps 和 0 dBm：3 mA
  • LE 编码 PHY (LE/LR)：500 Kbps、125 Kbps
  • 2 uA 深度睡眠模式，32KB RAM 保留
  • 0.8 uA 休眠模式，无保留
  • 符合蓝牙 SIG 标准
  • 使用 EZ-Serial 固件预编程

产品优势

  • 支持快速上市
  • 支持广泛的应用
  • 低功耗
  • 低成本

应用
