CYW43022
CYW43022
数据手册

商品详情

  • Longevity - 15 years
    Yes
  • GPIOs
    16, 7
  • ROM
    1152 KB
  • SRAM
    388 kByte
  • WI-FI Interface
    SDIO/SPI
  • Wi-Fi Specification
    Wi-Fi 5 (802.11ac)
  • Wi-Fi Band
    2.4GHz, 5GHz
  • Product Description
    Ultra-low power Wi-Fi 5
  • Longevity - Extended
    No
  • Core
    Cortex M4
  • Launch Date
    2024
  • Partner Module
    Y
  • Antenna Configuration
    1x1
  • Memory
    N/A
  • Package
    WLCSP-251, WLBGA-106
  • Dimensions
    3.76 x 4.43 mm, 3.76 x 4.43 mm
  • Operating Temperature
    -20 °C to 70 °C
  • Operating Voltage
    3.2 V to 4.6 V
  • Operating system support
    Linux, Android, RTOS
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • Bluetooth Interface
    UART/PCM
  • Bluetooth Specification
    Bluetooth 5.4
  • Pitch
    0.2 mm, 0.35 mm
  • Currently planned availability until at least
    01-01-2039
  • Software Support
    ModusToolbox™
受到推崇的
OPN
CYW43022CWBT CYW43022CUBT
产品状态 active and preferred active and preferred
英飞凌封装名称 SG-XFWLB-251
SG-XFWLB-106
封装名 WLCSP-251 (002-19495) WLBGA-106 (002-19474)
包装尺寸 5000 5000
包装类型 TAPE & REEL TAPE & REEL
湿度 1 1
防潮包装 NON DRY NON DRY
无铅 Yes Yes
无卤素 Yes Yes
符合RoHS标准 Yes Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 SG-XFWLB-251
封装名 WLCSP-251 (002-19495)
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

产品状态
Active
英飞凌封装名称
SG-XFWLB-106
封装名 WLBGA-106 (002-19474)
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

应用

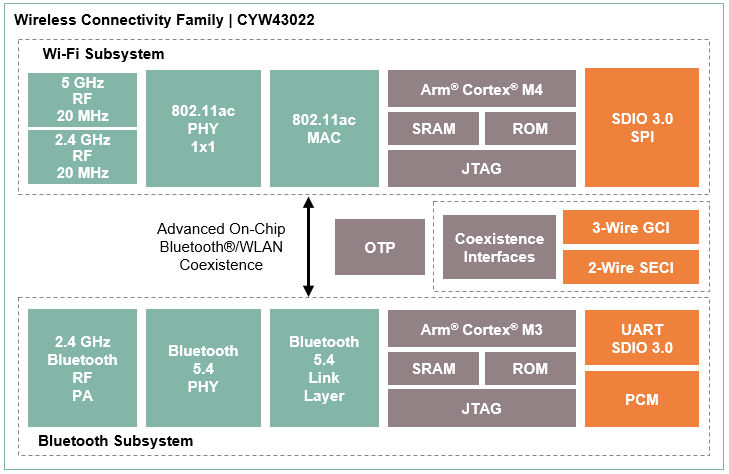

图表

CYW43022-images_02_20_23_png
CYW43022-images_02_20_23_png
CYW43022-images_02_20_23_png CYW43022-images_02_20_23_png CYW43022-images_02_20_23_png
×
