现货,推荐
符合RoHS标准

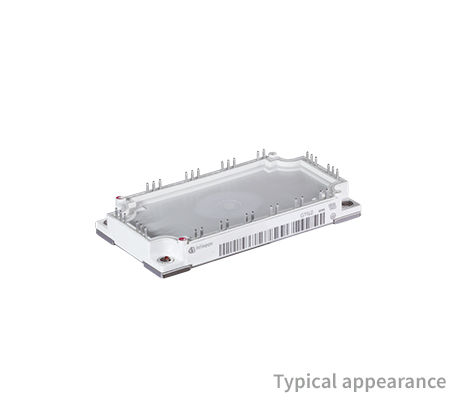

FP150R07N3E4

650 V、150 A PIM三相输入整流器IGBT模块

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP150R07N3E4
FP150R07N3E4

商品详情

  • IC(nom) / IF(nom)
    150 A
  • IC max
    150 A
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    650 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Housing
    EconoPIM™ 3
  • Dimensions (length)
    122 mm
  • Dimensions (width)
    62 mm
  • Technology
    IGBT4 - E4
  • Features
    Solder pin
  • Voltage Class max
    650 V
  • Qualification
    Industrial
  • Configuration
    PIM
OPN
FP150R07N3E4BOSA1
产品状态 active and preferred
英飞凌封装名称 AG-ECONO3B
封装名 N/A
包装尺寸 10
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 AG-ECONO3B
封装名 -
包装尺寸 10
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
EconoPIM ™ 3 650 V、150 A 三相 IGBT 模块,带有 Trench/Fieldstop IGBT4、发射极控制二极管和 NTC。也可作为采用 Press-Fit 接触技术的模块使用。

特性

  • 增加阻断电压。有能力。< 650 V
  • 高电流密度
  • Tvj op = 150°C
  • VCEsat具有正温度。系数。
  • 集成NTC温度传感器
  • 铜底板
  • 焊接接触技术
  • 标准外壳
