现货,推荐
符合RoHS标准

FS100R12N2T4P

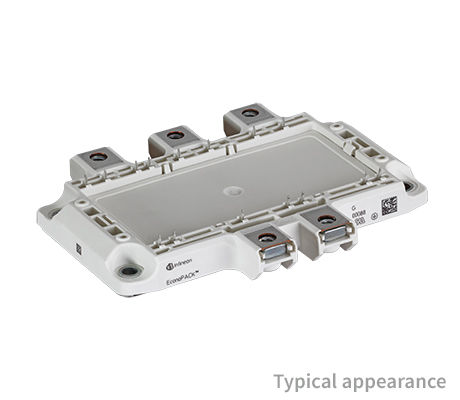

1200 V、100 A 六组 IGBT 模块

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS100R12N2T4P
FS100R12N2T4P

商品详情

  • IC(nom) / IF(nom)
    100 A
  • IC max
    100 A
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Housing
    EconoPACK™ 2
  • Dimensions (length)
    107.5 mm
  • Dimensions (width)
    45 mm
  • Technology
    IGBT4 - T4
  • Features
    TIM
  • Voltage Class max
    1200 V
  • Qualification
    Industrial
  • Configuration
    Sixpack
OPN
FS100R12N2T4PBPSA1
产品状态 active and preferred
英飞凌封装名称 AG-ECONO2B
封装名 N/A
包装尺寸 10
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 AG-ECONO2B
封装名 -
包装尺寸 10
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
EconoPACK ™ 2 1200 V、100 A 六组 IGBT 模块,带有快速 TRENCHSTOP ™ IGBT4、发射极控制 4 二极管、NTC 和预涂热界面材料。

特性

  • 高功率密度
  • 成熟的 Econo 模块概念
  • 集成温度传感器
  • 低杂散电感模块设计
  • 符合 RoHS 标准
