不建议用于新设计
符合RoHS标准

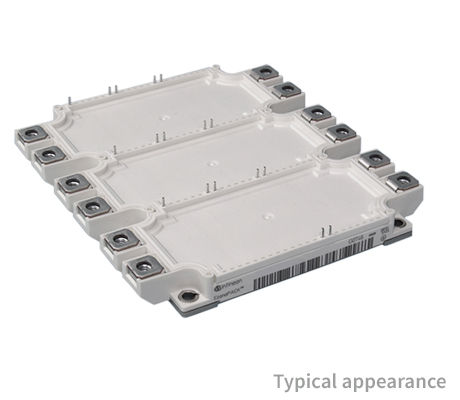

FS150R17KE3G

1700 V、150 A 六组 IGBT 模块

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS150R17KE3G
FS150R17KE3G

商品详情

  • IC(nom) / IF(nom)
    150 A
  • IC max
    150 A
  • VCE(sat) (Tvj=25°C typ)
    2 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Housing
    EconoPACK™ + B
  • Dimensions (width)
    150 mm
  • Dimensions (length)
    162 mm
  • Technology
    IGBT3 - E3
  • Features
    Solder Pin
  • Voltage Class max
    1700 V
  • Qualification
    Industrial
  • Configuration
    Sixpack
OPN
FS150R17KE3GBOSA1
产品状态 not for new design
英飞凌封装名称 AG-ECONOPP
封装名 N/A
包装尺寸 4
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 not for new design
英飞凌封装名称 AG-ECONOPP
封装名 -
包装尺寸 4
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
EconoPACK ™ + B 系列 1700V sixpack IGBT 模块,配备 Trench/Fieldstop IGBT3 和发射极控制 3 二极管

特性

  • 轻松分离直流电和交流电
  • 优化的热阻
  • 最高功率密度
  • 适用于紧凑型逆变器设计

应用
