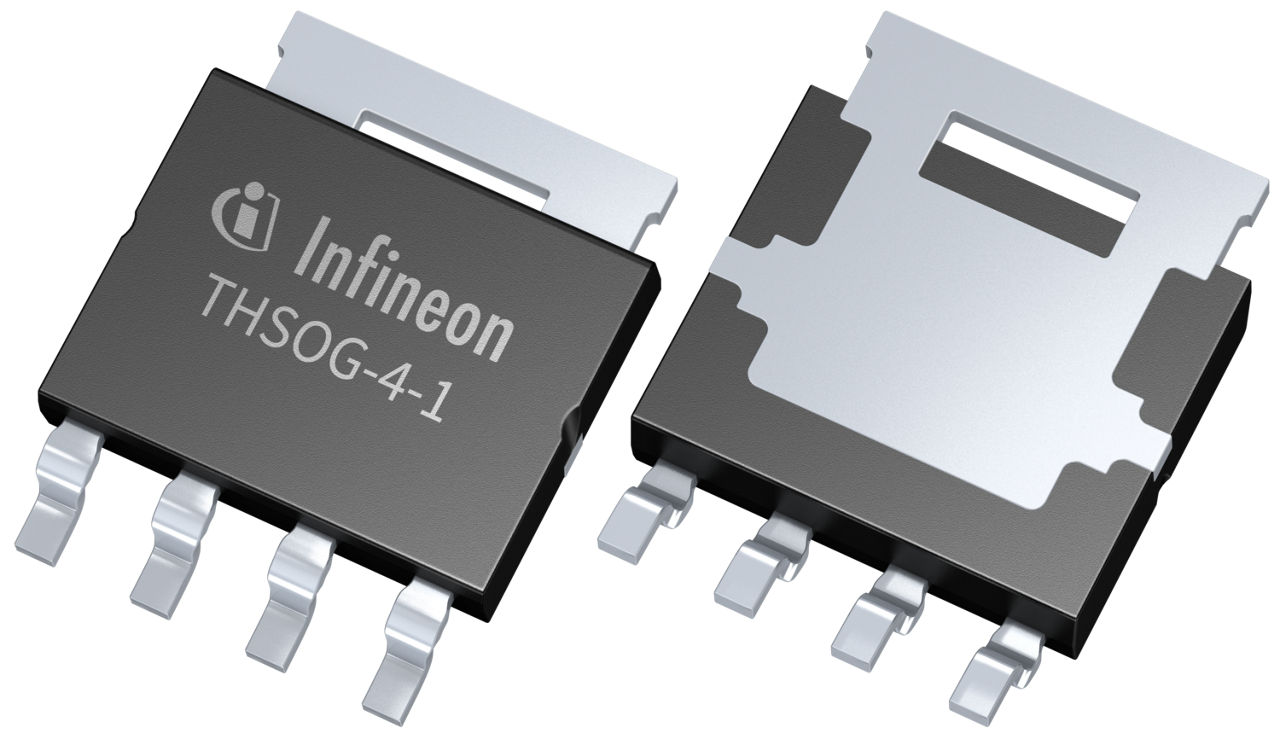

IAUCN04S7N010G

新品
OptiMOS™ 7 40V in SSO4G 5x6
数据手册
封装
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUCN04S7N010G
IAUCN04S7N010G
每件.
数据手册

商品详情

  • Country of Assembly (Last BE site, current, subject to change)
    Malaysia
  • Country of Diffusion (Last FE site, current, subject to change)
    Austria, Germany
  • ID (@25°C) max
    175 A
  • QG (typ @10V)
    59 nC
  • RDS (on) (@10V) max
    1.04 mΩ
  • VDS max
    40 V
  • VGS(th)
    2.6 V
  • 封装
    SSO4G
  • 工作温度
    -55 °C to 175 °C
  • 技术
    OptiMOS™-7
  • 极性
    N
  • 目前计划的可用性至少到
    2038
  • 认证标准
    Automotive
推荐的
OPN
IAUCN04S7N010GATMA1
产品状态 active and preferred
英飞凌封装名称
PG-THSOG-4
封装名 SSO4G
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
 每件. 有存货

产品状态
Active
英飞凌封装名称
PG-THSOG-4
封装名 SSO4G
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
Best choice for Insulated Metallic Substrate & Legacy Leaded Footprint Designs

特性

  • 5x6 mm² footprint
  • High current capability
  • OptiMOS-7 40V, leading-edge tech
  • RDS range: 1.0 mΩ – 4.7 mΩ
  • Leaded Cu-Clip; IMS & legacy footprint
  • High avalanche capability; rugged SOA

产品优势

  • Highest power and current density
  • High thermal capacity, lead-frame pkg
  • Reduced conduction losses
  • Optimized switching behavior
  • High TCOB for IMS PCBs
  • Legacy Footprint Design Compatibility
  • Automotive robust package
