IFCM30U65GD

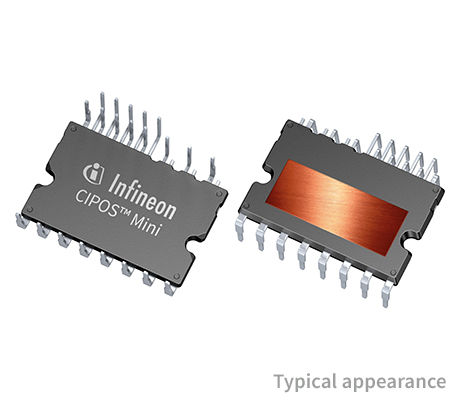

CIPOS ™ Mini 650 V、30 A三相交错式PFC智能功率模块

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IFCM30U65GD
IFCM30U65GD

商品详情

  • Pmot (10kHz)
    6400 W
  • Product Name
    IFCM30U65GD
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Mini
  • Additional Information
    Electrical
  • Built in NTC
    Yes
  • Encryption
    no
  • Switch Type
    IGBT
  • Voltage Class
    650 V
  • Qualification
    Industrial
  • Language
    PLECS
  • Configuration
    3 Phase Interleaved PFC
  • Rated Current
    30 A
OPN
IFCM30U65GDXKMA1
产品状态 active and preferred
英飞凌封装名称 N/A
封装名 DIP 36x21D
包装尺寸 280
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 N/A
封装名 DIP 36x21D
包装尺寸 280
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
CIPOS ™ Mini 650 V、30 A 三相 TRENCHSTOP ™ IGBT 智能功率模块采用 DIP 36x21D 封装,提供功能齐全的交错功率因数校正 (PFC) 输入功率级。基于 DCB 基板,具有出色的导热性和电隔离性,非常适合家用电器和工业驱动器。

特性

  • 基于 TRENCHSTOP ™ IGBT
  • 30 A 的 PFC 电流额定值
  • 坚固的 SOI 栅极驱动器技术
  • 过流关断
  • 所有开关。保护期间关闭。
  • 所有通道均欠压锁定。
  • 交叉传导预防
  • 内置温度监控
  • M.额定功率高达 6400 W@10 kHz
  • UL 认证
