IKQB160N75CP2

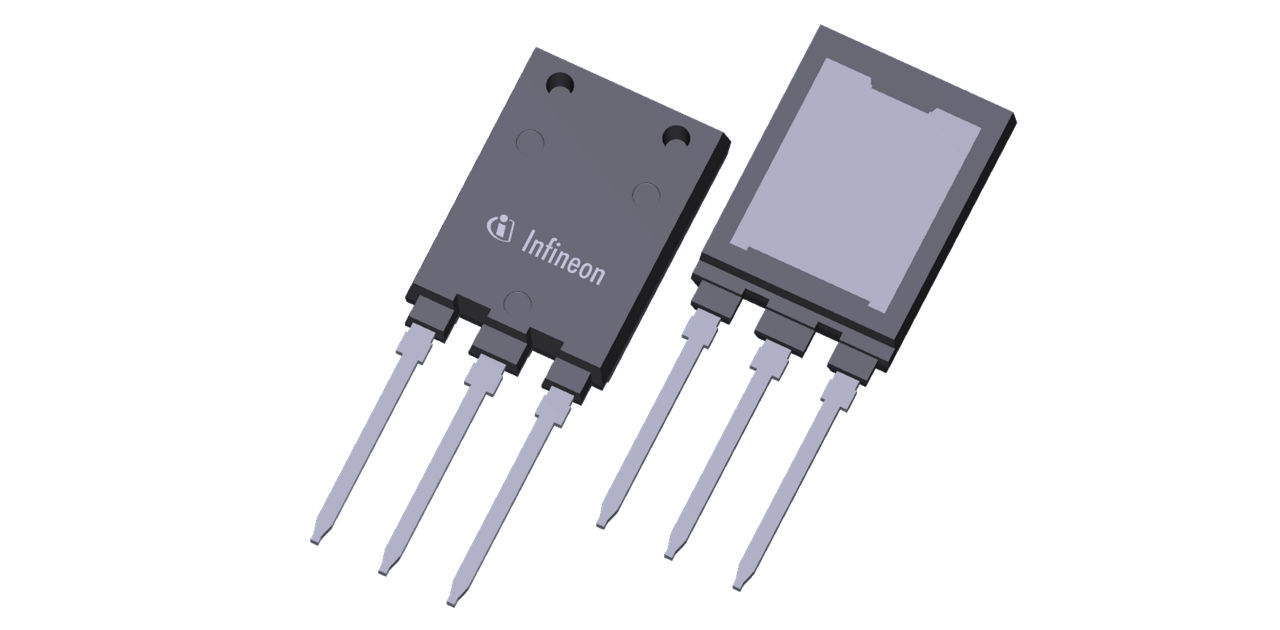

750 V、160 A 工业分立 EDT2 IGBT,带反并联二极管,采用 TO-247PLUS SMD 封装
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IKQB160N75CP2
IKQB160N75CP2
每件.

商品详情

  • Eoff (Hard Switching)
    7.6 mJ
  • Eon
    12.5 mJ
  • IC (@25°) max
    200 A, 150 A
  • ICpuls max
    480 A
  • IF max
    160 A
  • IFpuls max
    480 A
  • Irrm
    56.7 A
  • Ptot max
    750 W
  • QGate
    610 nC
  • Qrr
    12300 nC
  • RGint
    0 Ω
  • RG
    4.8 Ω
  • td(off)
    395 ns
  • td(on)
    69 ns
  • tf
    53 ns
  • tr
    69 ns
  • tSC
    3 µs
  • VCE(sat)
    1.7 V
  • VCE max
    750 V
  • VF
    1.9 V
  • VGE(th)
    5.8 V
  • Package
    TO-247-3-PLUS
  • Switching Frequency
    2 kHz to 15 kHz
  • Technology
    EDT2
  • Soft Switching
    No
OPN
IKQB160N75CP2AKSA1
产品状态 not for new design
英飞凌封装名称
封装名 N/A
包装尺寸 240
包装类型 TUBE
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态 not for new design
英飞凌封装名称
封装名 -
包装尺寸 240
包装类型 TUBE
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
采用 TO-247PLUS SMD 封装技术的硬开关 750 V、160 A EDT2 分立器件已经开发出来,以满足 CAV 应用(例如运输车辆、卡车和公交车驱动逆变器)的需求。我们的创新解决方案采用 TO-247PLUS SMD 封装,是现有 TO-247PLUS 封装的升级版,实现了封装背面兼容性,可在 245°C 下回流焊达三次。独特的无分层设计可实现超高功率密度和卓越的热管理。

特性

  • VCE= 750 V
  • IC = 160 A
  • 低饱和电压。VCEsat = 1.4 V
  • 低开关损耗
  • 短路强度 3 μs
  • 带有软恢复和快速恢复二极管
  • 优化。用于硬开关 <10 kHz
  • 封装背面适用于:
  • 245°C 回流焊接,3 次
  • 引脚电镀进一步实现:
  • 电阻焊接
