IM12B15CC1

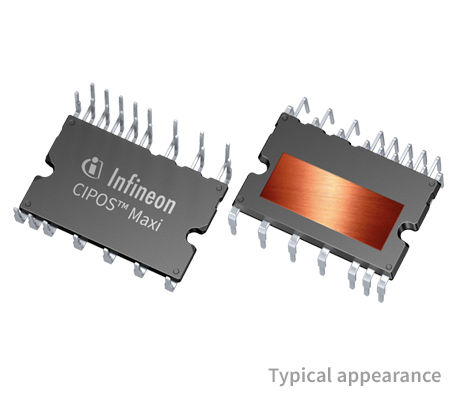

CIPOS ™ Maxi 1200 V,15 A三相智能功率模块
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IM12B15CC1
IM12B15CC1
每件.

商品详情

  • IC (@ 25°)
    22 A
  • Pmot (10kHz)
    3 kW
  • Product Name
    IM12B15CC1
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Maxi
  • Additional Information
    Electrical
  • Built in NTC
    Yes
  • Encryption
    No
  • Switch Type
    IGBT
  • Voltage Class
    1200 V
  • Qualification
    Industrial
  • Language
    PLECS
  • Configuration
    3 Phase Open Emitter
  • Rated Current
    15 A
OPN
IM12B15CC1XKMA1
产品状态 active and preferred
英飞凌封装名称 N/A
封装名 DIP 36x23D
包装尺寸 280
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 N/A
封装名 DIP 36x23D
包装尺寸 280
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

特性

  • 基于 1200 V TRENCHSTOP ™ IGBT7
  • 额定功率高达 3000 W(10 kHz)
  • 坚固耐用的 1200 V SOI 栅极驱动器
  • 过流关断
  • 欠压锁定
  • 保护期间所有 6 个开关均关闭
  • 温度监测
  • 交叉传导预防
  • UL 认证

产品优势

  • 出色的热性能
  • 低开关损耗
  • 适合空间受限的应用
  • 占地面积小
