IPU50R1K4CE
IPU50R1K4CE

商品详情

  • ID (@25°C) max
    3.1 A
  • ID max
    3.1 A
  • IDpuls max
    9.1 A
  • Ptot max
    25 W
  • QG
    8.2 nC
  • QG (typ @10V)
    8.2 nC
  • RDS (on) max
    1400 mΩ
  • RDS (on) (@10V) max
    1400 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    4.91 K/W
  • Rth
    4.91 K/W
  • VDS max
    500 V
  • VGS(th)
    2.5 V to 3.5 V
  • Mounting
    THT

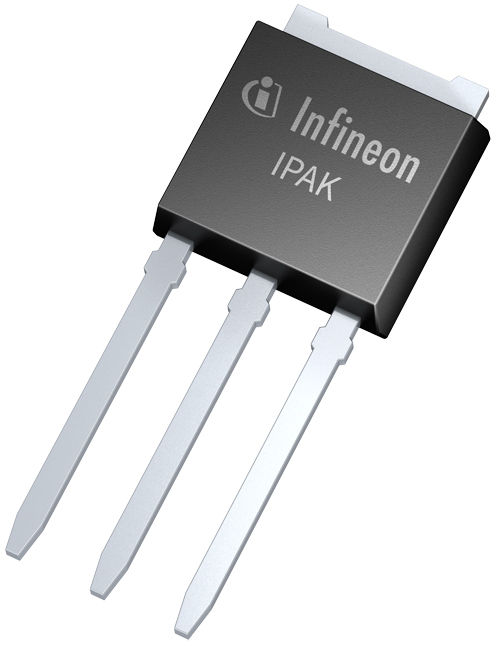

  • Package
    IPAK (TO-251)
  • Operating Temperature min
    -55 °C
  • Pin Count
    3 Pins
  • Polarity
    N
OPN
产品状态
英飞凌封装名称
封装名
包装尺寸
包装类型
湿度
防潮包装
无铅
无卤素
符合RoHS标准
Infineon stock last updated:
500V CoolMOS ™ CE 是一个性价比优化的平台,能够满足消费和照明市场中成本敏感的应用,同时仍能满足最高的效率标准。新系列具有快速开关超结 MOSFET 的所有优点,同时又不牺牲易用性,并提供了市场上最佳的成本性能比。

特性

  • 降低输出电容中存储的能量 (E oss)
  • 高体二极管耐用性
  • 降低反向恢复电荷 (Q rr )
  • 减少栅极电荷 (Q g )

产品优势

  • 轻松控制开关行为
  • 与前几代 CoolMOS ™相比,轻载效率更高
  • 与标准 MOSFET 相比,成本更具吸引力
  • CoolMOS ™技术具有卓越的品质和可靠性
