IRHNS597064SCS
IRHNS597064SCS

商品详情

  • ESD Class
    Class 3A
  • ID (@100°C) max
    -56 A
  • ID (@25°C) max
    -56 A
  • QG
    200 nC
  • QPL Part Number
    2N7524U2A
  • RDS (on) (@25°C) max
    16 mΩ
  • SEE
    Yes
  • TID max
    100 Krad(Si)
  • VBRDSS min
    -60 V
  • VF max
    -5 V
  • Download Model
    https://www.infineon.com/cms/dgdl/Infineon-Spice_File_IRHNS597064-SimulationModels-v01_01-EN.spi?fileId=8ac78c8c84f2c0670184f4f84f2f12c6
  • Product Category
    Rad hard MOSFETS
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SupIR-SMD
  • Polarity
    P
  • Generation
    R5
  • Voltage Class
    100 V
  • Die Size
    6
  • Qualification
    QIRL
  • Language
    SPICE
  • Configuration
    Discrete
OPN
产品状态
英飞凌封装名称
封装名
包装尺寸
包装类型
湿度
防潮包装
无铅
无卤素
符合RoHS标准
Infineon stock last updated:

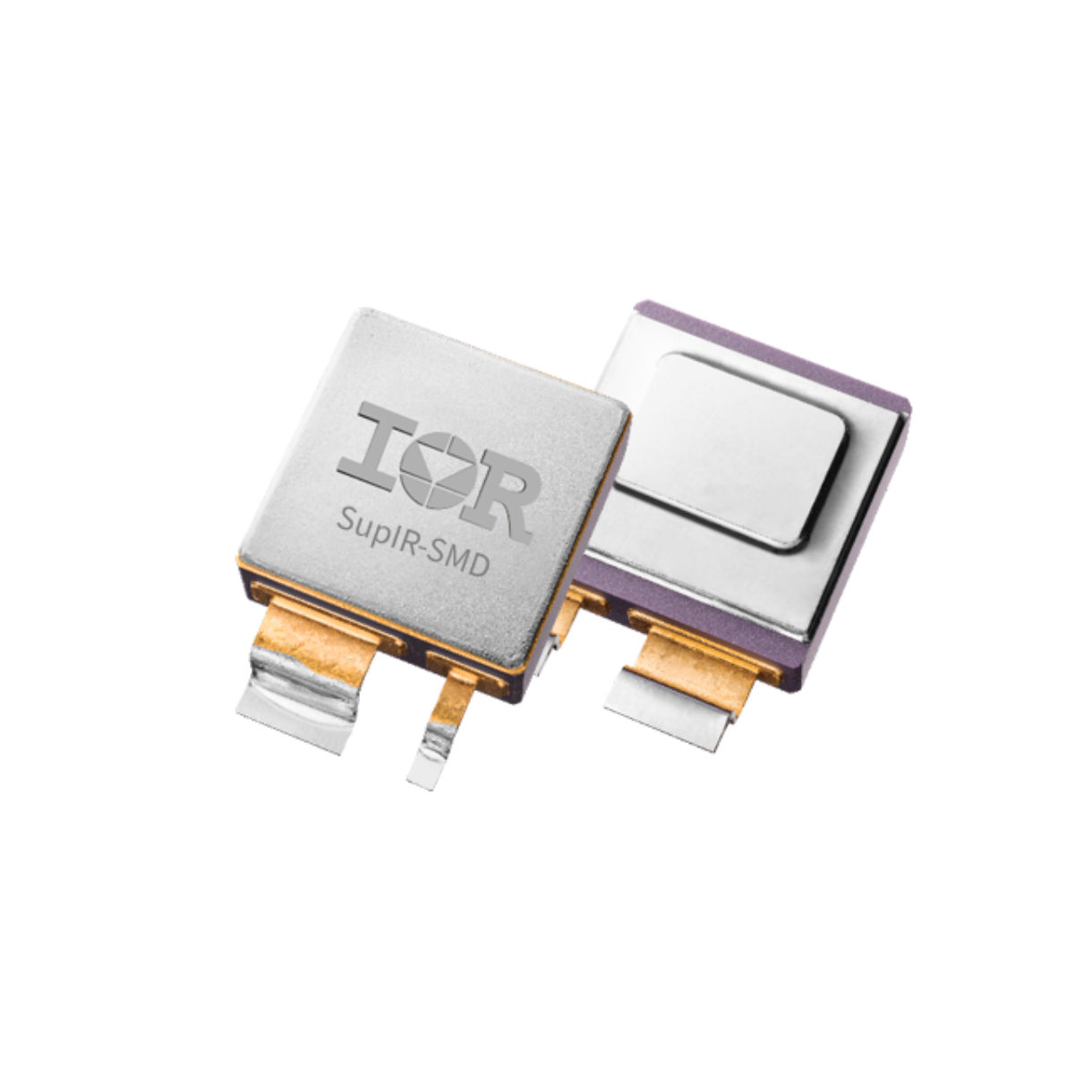

IRHNS597064SCS 是一款 R5、抗辐射、-60V、-56A、单 P 通道 MOSFET,采用 SupIR-SMD 封装。其电气性能高达 100krad(Si) TID、QIRL 分类,并具有低 RDS(on) 和低栅极电荷,使其适用于 DC-DC 转换器和电机控制器等开关应用,同时保留了 MOSFET 的优点。
