T501N70TOH
T501N70TOH
每件.

商品详情

  • ITAVM/TC [A/°C] (@180° el sin)
    640/85
  • ITAVM
    640 (180 ° el sin)
  • ITSM [A] (@10ms, Tvj max)
    13000
  • ITSM
    13000 A
  • rT [mΩ] (@Tvj max) max
    1.35
  • RthJC [K/kW] (@180° el sin) max
    17
  • tq [µs]
    600
  • Tvj [°C] max
    125
  • VDRM / VRRM [V]
    7000
  • VDRM/ VRRM (V)
    7000 V
  • VT/IT [V/kA] (@Tvj max)
    2.65/1.0
  • VT0 [V] (@Tvj max) max
    1.3
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    845
  • Clamping force [kn]
    15 to 24
  • Housing
    Disc dia 75mm height 26mm / Ceramic
  • Configuration
    Electrical Triggered Phase Control Thyristor
OPN
T501N70TOHXPSA1
产品状态 active and preferred
英飞凌封装名称 BG-T7626K-1
封装名 N/A
包装尺寸 4
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 BG-T7626K-1
封装名 -
包装尺寸 4
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

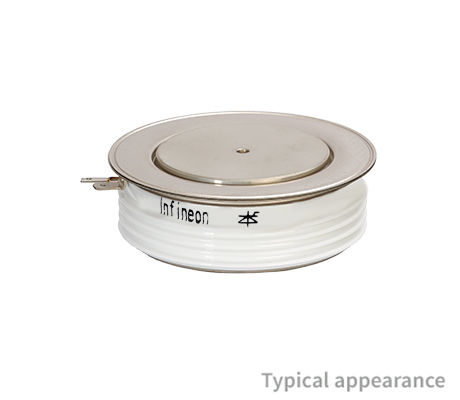

T501N 相控晶闸管圆片组装在高可靠、坚固且密封的陶瓷外壳中,直径为 76 毫米,高度为 26 毫米。

特性

  • 完全阻断能力 50/60 Hz
  • 高直流阻断稳定性
  • 高浪涌电流能力
  • 高外壳不断裂电流
  • 高导通能力 di/dt
