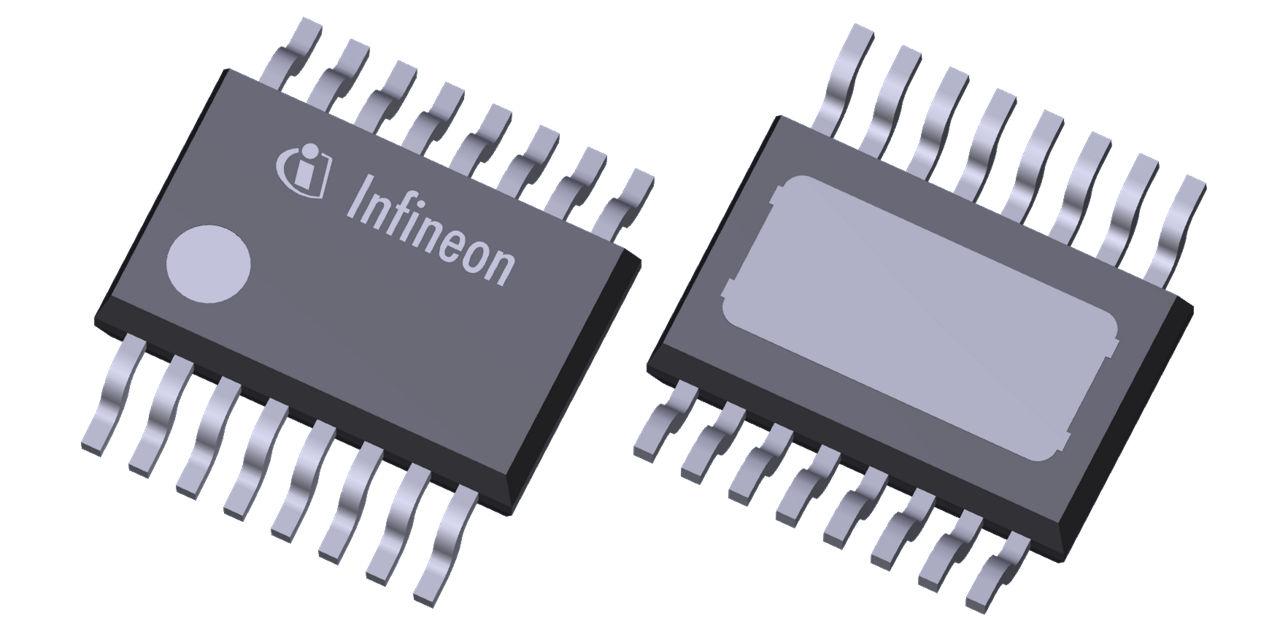

TLD1173-1ET

LITIX ™ Basic+ TLD1173-1ET 是一款具有功率转换功能的单通道低侧驱动器 IC
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD1173-1ET
TLD1173-1ET
每件.

商品详情

  • PWM
    Yes
  • PWM engine
    No
  • VQ (multiple)
    36 V
  • VS
    4.5 V to 36 V
  • Tolerance
    4%
  • Power Offloading
    Yes
  • Single LED short detection
    No
  • Operating Temperature
    -40 °C to 150 °C
  • Parallelized Output Current
    400 mA
  • Open Load Detection
    Yes
  • Topology
    Linear
  • Control Inputs
    1
  • Halogen-free
    Yes
  • Output Current per channel
    5 mA to 400 mA
  • Short GND Detection
    Yes
  • Short Circuit Protection
    Yes
  • Family
    LITIX™ Basic +
  • Green Product
    Yes
  • Currently planned availability until at least
    2038
  • Output Channels
    1
OPN
TLD11731ETXUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2a
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2a
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
TLD1173-1ET 是一款单通道低侧驱动器 IC,可作为线性电流吸收器控制高达 400 mA 的 LED。它通过功率转换功能最大限度地提高电流驱动,提供集成诊断和可配置故障管理,以增强大电流应用的可靠性和性能。

特性

  • 高达 400 mA 的输出电流
  • 通过外部电阻卸载功率
  • 1-fail-all-OFF 和 1-fail-all-ON 支持
  • 模拟输出电流控制
  • 开路负载、电池短路保护
  • 热关断保护
  • 智能故障管理
  • 网络共享常见错误
  • 热降额功能
  • 外部 NTC 电阻用于降额

产品优势

  • 驱动大电流
  • 提高热性能
  • 减少 PCB 空间
