TLD2314EL

LITIX ™ Basic TLD2314EL 是一款三通道高侧驱动器 IC,带有集成输出级
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD2314EL
TLD2314EL
每件.

商品详情

  • Iq
    0.1 µA
  • PWM
    Yes
  • PWM engine
    No
  • VQ (multiple)
    40.0 V
  • VS
    5.5 V to 40 V
  • Product Category
    Automotive Lighting ICs
  • Tolerance
    7%
  • Feedback Output
    No
  • Operating Temperature
    -40 °C to 150 °C
  • Open Load Detection
    Yes
  • Inhibit
    No
  • Topology
    Linear
  • Control Inputs
    3
  • Short GND Detection
    Yes
  • Short Circuit Protection
    Yes
  • Family
    LITIX™ Basic
  • Currently planned availability until at least
    2038
  • Language
    SPICE
  • Output Current
    60 mA
  • Output Channels
    3
OPN
TLD2314ELXUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
TLD2314EL 设计用于控制电流高达 120 mA 的 LED。在典型的汽车应用中,该设备能够驱动每链 3 个红色 LED(总共 9 个 LED),电流高达 60mA,但受到热冷却方面的限制。输出电流的控制实际上不受负载和电源电压变化的影响。

特性

  • 集成 O/P,优化用于驱动 LED
  • 每通道输出电流高达 120mA
  • 睡眠模式下电流消耗低
  • 通过 VS 引脚支持 PWM 操作
  • 输出电流可调
  • 反极性保护
  • 欠压检测
  • 开路负载和对地短路诊断
  • 宽温度范围:-40 °C<150 °C
  • 带裸露散热片的 PG-SSOP14 封装
  • 绿色产品(符合 RoHS 标准)

图表

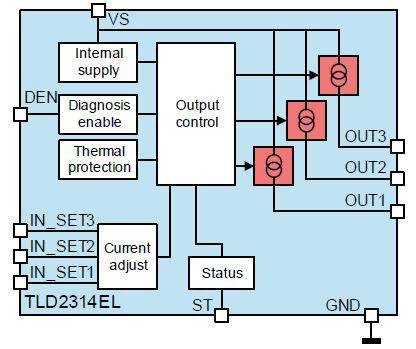

Block_Diagram_TLD2314EL

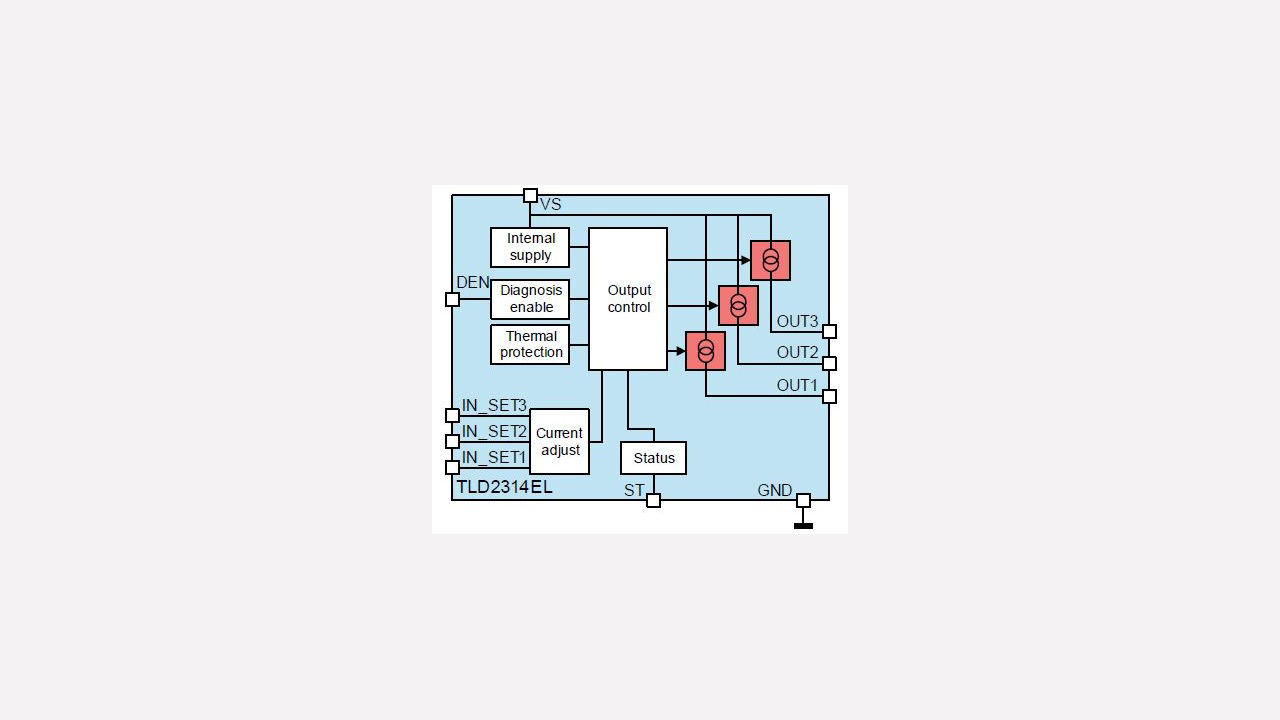

Block_Diagram_TLD2314EL
Block_Diagram_TLD2314EL Block_Diagram_TLD2314EL Block_Diagram_TLD2314EL
