现货,推荐
符合RoHS标准
无铅

TLE4266-2GS V33

TLE4266-2GS V33 是一款单片集成低压差固定电压稳压器,可提供高达 150 mA 的负载。
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4266-2GS V33
TLE4266-2GS V33
每件.

商品详情

  • Hold
    no
  • Accuracy
    3 %
  • Dropout Voltage
    1000 mV
  • Enable (=Inhibit)
    yes
  • Reset
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    4.4 V to 45 V
  • Status Output
    no
  • Power Fail
    no
  • Power Good
    no
  • Watchdog
    no
  • Family
    EiceDRIVER™ isolated gate driver ICs for EV
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Regulator Type
    General Purpose
  • Output Voltage Type
    3.3 V
  • Output Current max
    100 mA
  • Over Voltage Protection
    no
  • Quiescent Current
    40 µA
  • Budgetary Price €/1k
    0.66
  • Early Warning
    no
OPN
TLE42662GSV33HTMA2
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 4000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 Yes
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 4000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

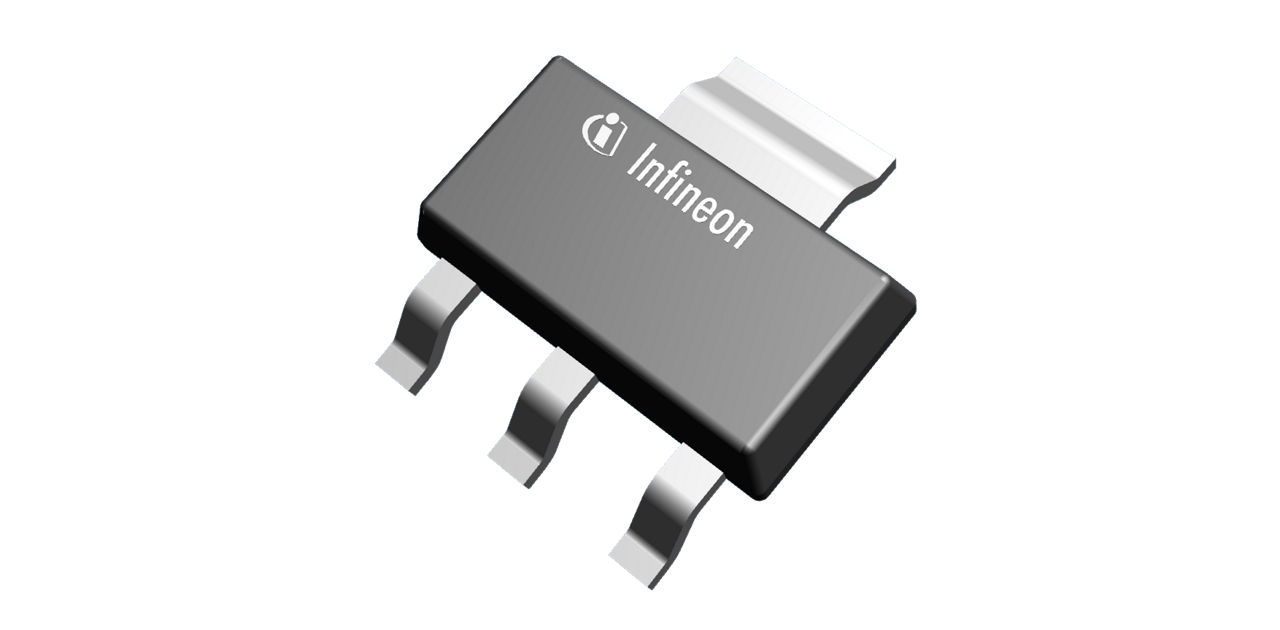

TLE4266-2:降低静态电流(关闭时<1µA,开启时40µA)。TLE4266 的低电流替代品。PG-SOT223-4封装,引脚兼容。过载、短路和过热保护。将输入电压调节至最高 45V(精度为±3%)。工作范围:-40至150°C。INH 引脚为高电平时开启。

特性

  • 固定输出电压 5.0 V 或 3.3 V
  • 输出电压容差 ≤ ± 2%、± 3%
  • 150 mA 电流能力
  • 电流消耗极低
  • 低压降
  • 过温保护
  • 宽温度范围
  • 适用于汽车电子产品
  • 抑制
  • 绿色产品(符合 RoHS 标准)
  • 符合 AEC 标准

产品优势

  • 强大的保护功能
  • 宽输入和温度范围操作
