TLF35584QKVS2

TLF35584QKVS2 是一款多输出系统电源,适用于为 3.3V-μC、收发器和传感器供电的安全相关应用。
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF35584QKVS2
TLF35584QKVS2
每件.

商品详情

  • Iout max
    200 mA, 600 mA, 150 mA, 10 mA, 1300 mA
  • Iq
    70 µA
  • ISO 26262
    ASIL-D
  • VQ (multiple)
    5.0 V, 5.8 V
  • Product Group
    PMIC
  • Tolerance
    2%
  • Classification
    ISO 26262-compliant
  • Enable (=Inhibit)
    yes
  • Base Product
    TLF35584Qx
  • Comments
    2 tracker, StBy-LDO, ISO 26262-compliant, Safety Features, Automotive Safety PMIC , companion power IC for Aurix™ MCU and peripherals, Buck/Boost PreReg, 3 linear PostRegs (µC, RefLDO, TRX)
  • Reset
    yes

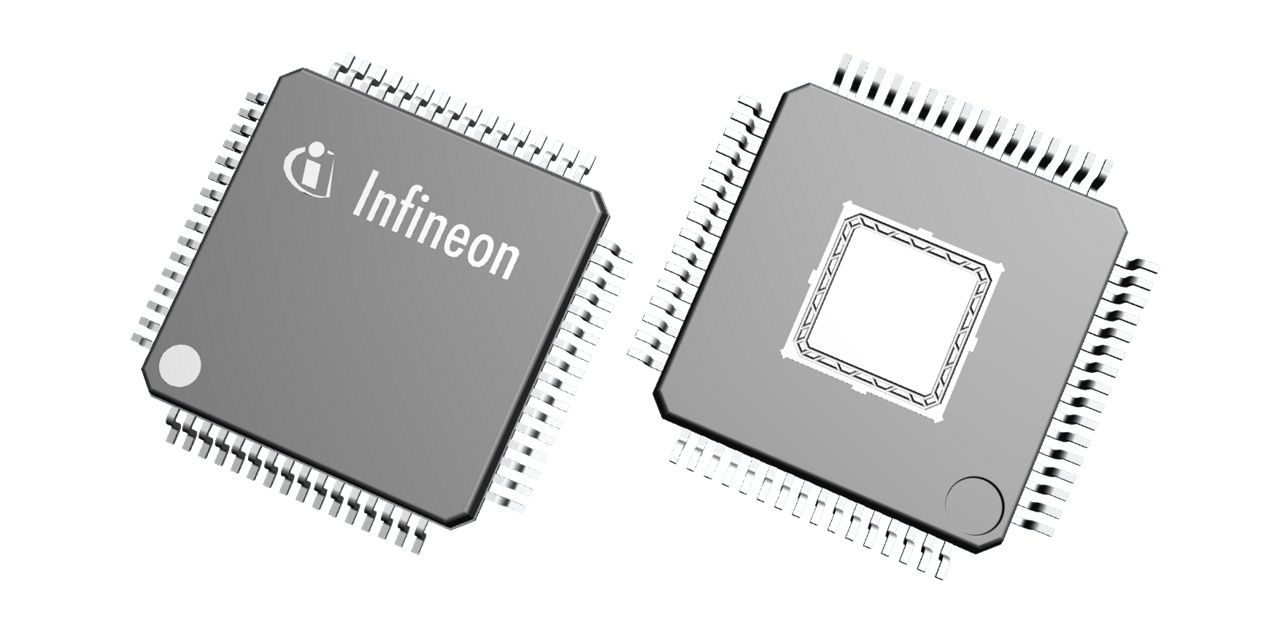

  • Package
    PG-LQFP-64
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3 V to 40 V
  • Target Application
    Safe Computing, Safe Control
  • Watchdog
    Functional-WD, Window-WD
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Regulator Type
    Buck-boost
  • Over Voltage Protection
    yes
OPN
TLF35584QKVS2XUMA2
产品状态 active
英飞凌封装名称
封装名 N/A
包装尺寸 1900
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 1900
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
TLF35584 是一款多功能设备,具有宽频率范围,可实现高效的功率优化。它具有专用参考调节器、灵活的状态机、唤醒概念和符合 ASIL-D 的多种安全功能。它用作 Hitex ShieldBuddy AURIX ™ TC375 上的电源和安全监视器。如需更多信息,请联系销售人员或技术援助中心 (TAC)。

特性

  • μC(主、ADC/基准、StBy)
  • 收发器
  • 传感器
  • UV/OV监控
  • 灵活的看门狗
  • 错误监控
  • 具有2个输出的安全状态控制器
  • BIST

产品优势

  • 高效灵活
  • 在系统级实现 ASIL-D
  • 通过全套文档轻松实现 ISO26262 实施
