请注意,这是一个已停产的产品。 查看较新的替代产品版本 请注意,这是一个已停产的产品。 查看较新的替代产品版本
停产
已停产
符合RoHS标准
无铅

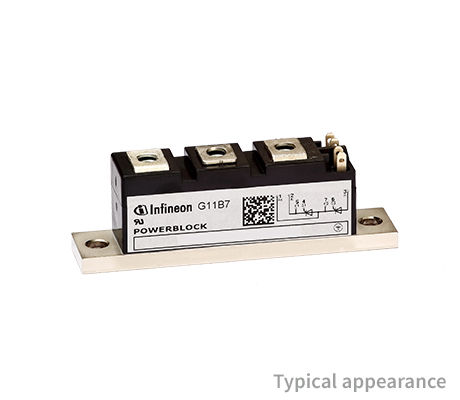

TT104N14KOF

停产
采用压接技术的 1400 V 晶闸管/晶闸管模块

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TT104N14KOF
TT104N14KOF

商品详情

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    150
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    104/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    1800
  • rT [mΩ] (@Tvj max)
    2.43
  • RthJC [K/W] (@180° el sin)
    0.37
  • Tvj [°C]
    140
  • VDRM / VRRM [V]
    1400
  • VT0 [V] (@Tvj max)
    0.85
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    16.2
  • Product Line
    Power Block
  • Housing
    20 mm
  • Configuration
    SCR / SCR Phase Control
OPN
TT104N14KOFHPSA1
产品状态 discontinued
英飞凌封装名称 BG-PB20-1
封装名 N/A
包装尺寸 15
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 discontinued
英飞凌封装名称 BG-PB20-1
封装名 -
包装尺寸 15
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
晶闸管/晶闸管 20 毫米电源块 1400 V、104 A 模块,采用隔离铜底板,采用压力接触技术进行相位控制。

特性

  • 压接技术
  • 工业标准封装
  • 电绝缘底板
  • 故障时短路
  • 最高的坚固性和可靠性
