XMC1403-Q064X0200 AA

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XMC1403-Q064X0200 AA
XMC1403-Q064X0200 AA

商品详情

  • A/D Input Lines (incl. FADC)
    12
  • Number of ADC Modules
    2
  • CAN Nodes
    2
  • CPU
    ARM Cortex-M0
  • DMA Channels
    0
  • DSP Functionality
    no
  • EEPROM Emulation
    Yes
  • I/O Operation Voltages
    5.5 V, 1.8 V
  • SRAM (incl. Cache)
    16 kByte
  • SRAM
    16 kByte
  • Serial I/O Interfaces
    4
  • Type of Serial I/O Interfaces
    I²C, I²S, SPI, UART
  • Power Mode
    clock gating possible
  • External Bus Interface
    no
  • Type of Memory
    Flash
  • Timed I/O Pins (PWM, CAPCOM)
    8
  • Real Time Clock
    yes
  • Fast Flash Programming
    no
  • Instruction Width ([bits])
    32/16
  • Oscillator Watchdog
    yes
  • Digital I/O Pins
    55
  • Secondary Core
    N/A
  • Floating Point Unit
    no
  • Temperature
    -40 to 105°C
  • On-chip Clock Generation
    yes
  • On-chip Voltage Regulator
    yes
  • Watchdog Timer
    yes
  • Program Memory
    200 kByte
  • Family
    XMC1400
  • Touch/LED Matrix Control
    no
  • Timer/Counter
    16
  • Qualification
    Industrial
  • Flash
    200 kByte
  • Budgetary Price €/1k
    1.7
  • Frequency max
    48 MHz
OPN
XMC1403Q064X0200AAXTMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 N/A
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
XMC1100系列属于基于 Arm® Cortex-M0® 处理器内核的 XMC1000 系列工业微控制器。 XMC1400 具有更高的内核和外围时钟,与 XMC1300 相比,性能提高了 70%。除了用于电机和电源控制应用的专用外设外,XMC1400 设备还提供 2 个 CAN 节点,并支持开发环境,从而缩短产品上市时间。

特性

  • 48 MHz 核心 / 96 MHz 外设时钟
  • 工作范围 1.8 - 5.5 V,-40 - 105°C
  • 200KB 闪存(ECC、缓存)、16KB RAM
  • 12 位 ADC,1 Ms/s,14 个输入,2x S&H
  • 8 x 16 位捕获、比较、PWM 定时器
  • 4 个串行通道,2x CAN / 32 MO
  • 实时时钟、看门狗、PRNG

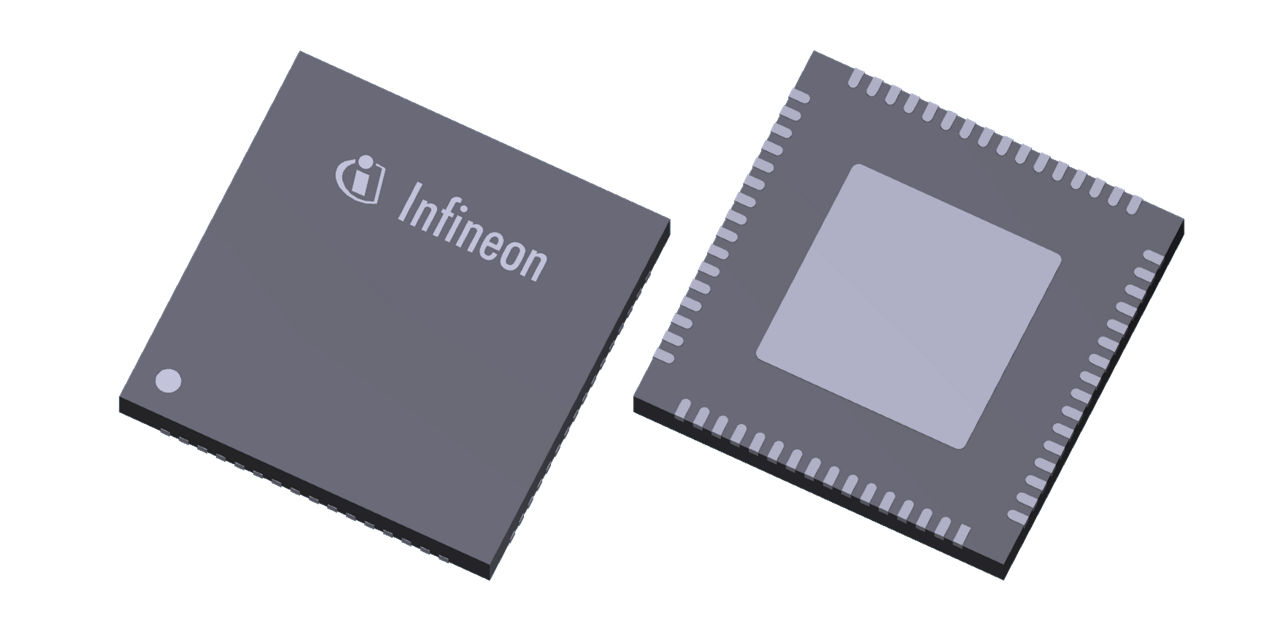

  • VQFN-64、8x8 mm²、0.4 毫米间距、56 IO
