新品
按需供应
符合RoHS标准

IGD70R270D2S

新品

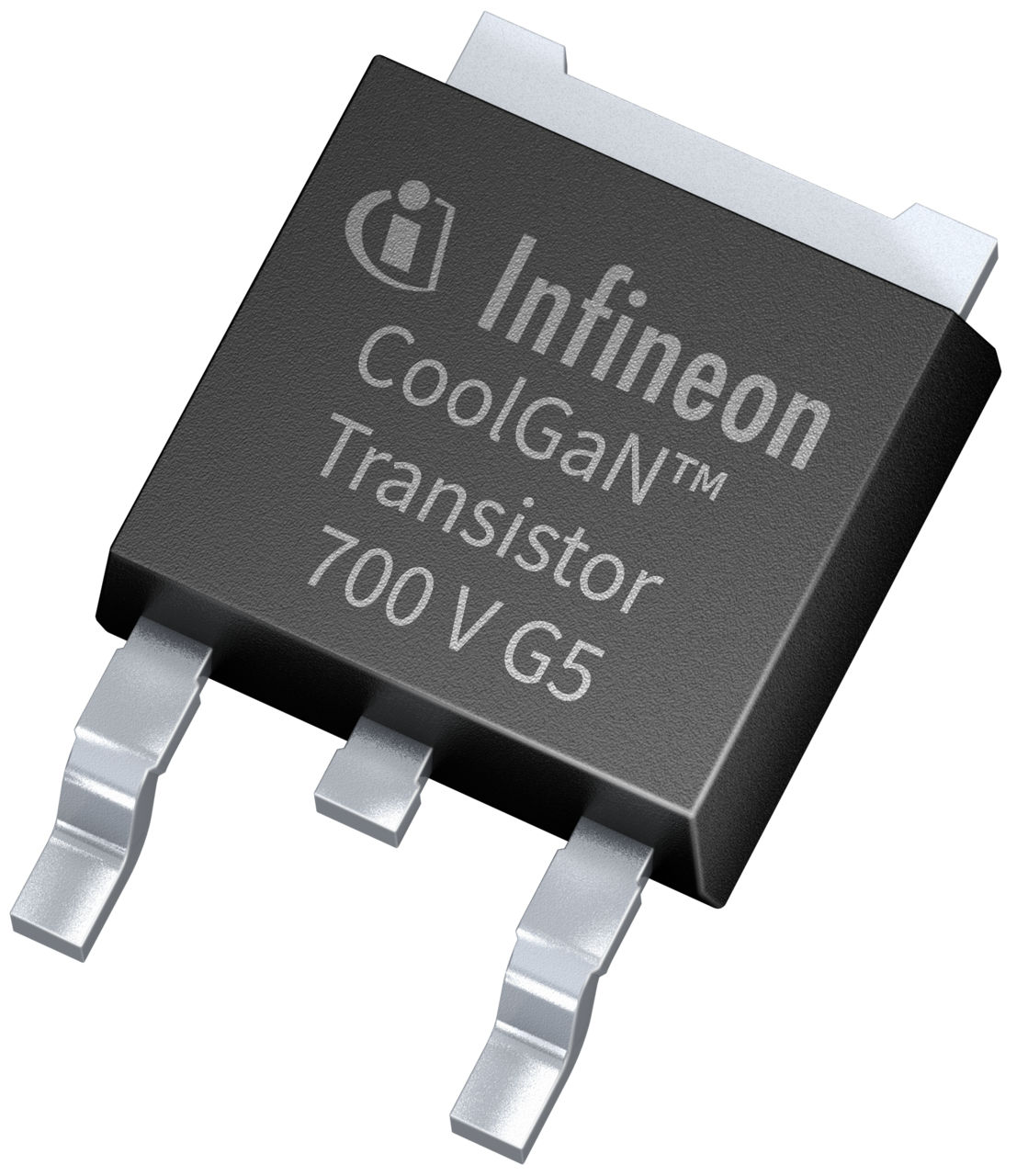

CoolGaN ™晶体管 700 V G5

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGD70R270D2S
IGD70R270D2S

商品详情

  • ID (@25°C) max
    5.8 A
  • IDpuls (@25°C) max
    13 A
  • QG
    1 nC
  • RDS (on) (typ)
    270 mΩ
  • VDS max
    700 V
  • Mounting
    SMT
  • Generation
    G5
OPN
IGD70R270D2SAUMA1
产品状态 on request
英飞凌封装名称 PG-TO252-3
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 on request
英飞凌封装名称 PG-TO252-3
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
IGD70R270D2S GaN功率晶体管可提高高频运行时的效率。作为 CoolGaN ™ G5 系列的一部分,它符合最高质量标准,可实现具有卓越效率的高可靠性设计。它采用 DPAK 封装,非常适合具有纤薄外形的消费类应用。

特性

  • 700 V e 模式功率晶体管
  • 超快切换
  • 无反向恢复电荷
  • 具有反向传导能力
  • 低栅极电荷,低输出电荷
  • 卓越的换向坚固性
  • 低动态 RDS(on)
  • 通过 JEDEC 认证(JESD47、JESD22)

产品优势

  • 支持高工作频率
  • 实现最高的系统效率
  • 实现超高功率密度设计
  • 支持节省 BOM 成本
