EVAL_TLE9186QVW

The MOTIX ™ TLE9186QVW evaluation board enables easy evaluation of Infineon’s ISO 26262-compliant (ASIL B) TLE9186QVW gate driver IC for 12 V BLDC motors.
软件

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TLE9186QVW
EVAL_TLE9186QVW
  • 拓扑结构
    3-phase inverter
  • 系列
    MOTIX™ gate driver ICs for BLDC motors
  • 认证标准
    Automotive
  • 输入类型
    DC
推荐的
OPN
EVALTLE9186QVWTOBO1
产品状态 active and preferred
英飞凌封装名称 N/A
封装名 N/A
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes

产品状态
Active
英飞凌封装名称 N/A
封装名 -
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准
The MOTIX ™ TLE9186QVW evaluation board combines Infineon's TRAVEO™ CYT2B7 microcontroller with the MOTIX™ SBC TLE9563 and the MOTIX™ TLE9186QVW 3-phase gate driver  IC. All pins of the TLE9186QVW are accessible directly and most of the pins through pin headers. A comprehensive ecosystem, including software (device driver) and a configuration wizard, streamlines the evaluation of the device and validation of advanced motor control applications.

特性

  • MOTIX™ TLE9186QVW gate driver IC
  • TRAVEO™ CYT2B7 microcontroller
  • MOTIX™ SBC TLE9563
  • Designed for 3-phase BLDC motors
  • B6 bridge for direct motor connection
  • Hall sensor connector
  • Test points for easy measurements
  • Universal serial bus (USB) port
  • On-board debugger
  • Graphical user interface (GUI)

产品优势

  • Easy evaluation of TLE9186QVW features
  • Complete package: MOTIX™ HW, SW & tool

应用

Bill of Material

文档

设计资源

图表

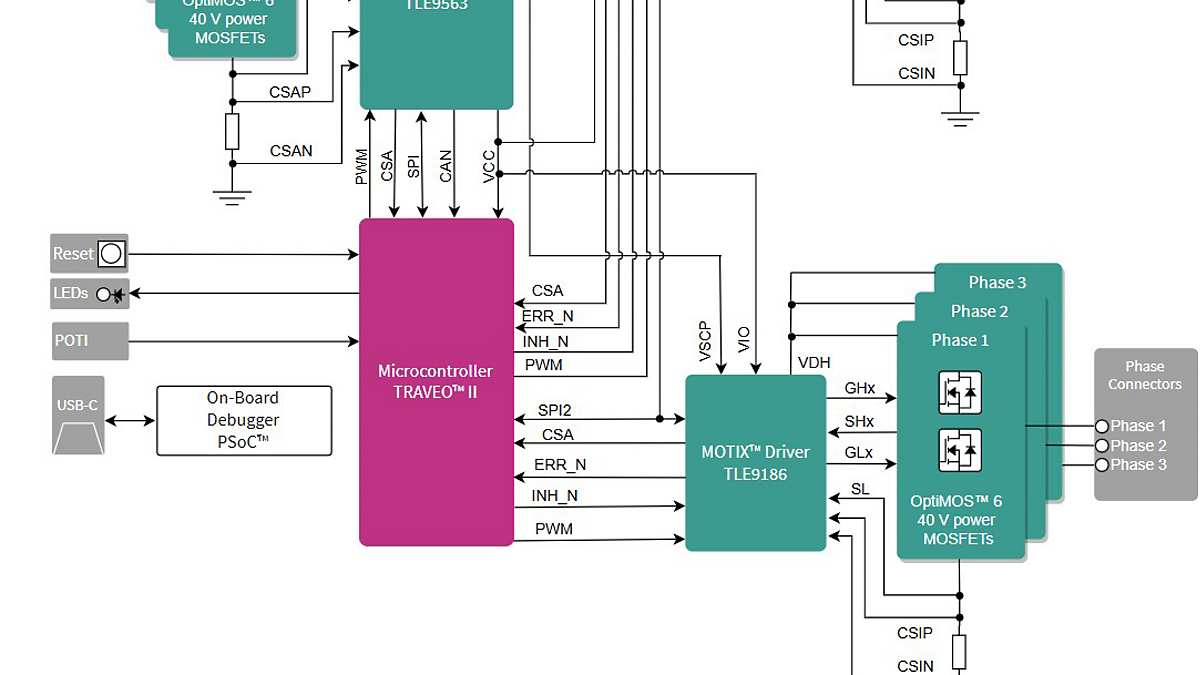

TLE9186_Evaluation_Board_Diagram
