在产
符合RoHS标准
无铅

IMZA65R107M1H

每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IMZA65R107M1H
IMZA65R107M1H
每件.

商品详情

  • ID (@25°C) max
    48 A
  • Ptot max
    75 W
  • RDS (on) (@ Tj = 25°C)
    107 mΩ
  • VDS max
    650 V
  • Package

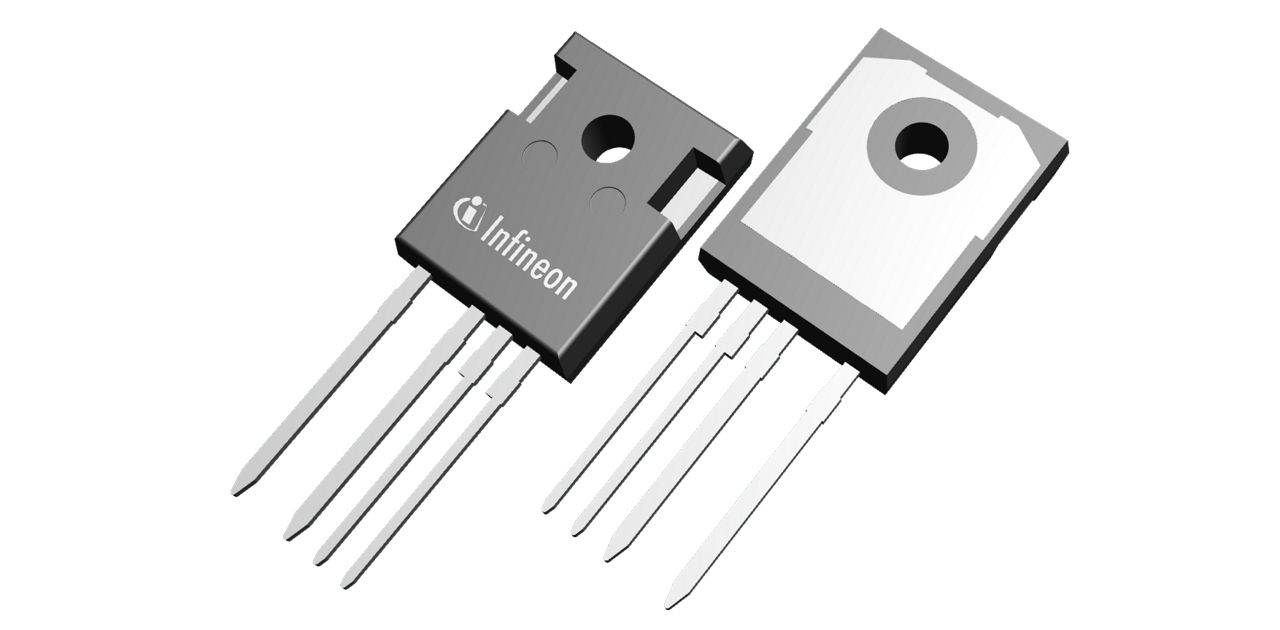

    TO247 4-pin (asymmetric leads)
  • Operating Temperature
    -55 °C to 175 °C
  • Pin Count
    4 Pins
  • Technology
    CoolSiC™ G1
  • Polarity
    N
  • Qualification
    Industrial
OPN
IMZA65R107M1HXKSA1
产品状态 active
英飞凌封装名称
封装名 TO247 4-pin (asymmetric leads)
包装尺寸 240
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 TO247 4-pin (asymmetric leads)
包装尺寸 240
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
CoolSiC ™ MOSFET 技术利用碳化硅的强大物理特性,增加了独特的功能,提高了设备的性能、稳健性和易用性。这款 650V CoolSiC ™采用最先进的沟槽 MOSFET 构建,经过优化,可在应用中给定导通电阻时实现最低开关损耗,并在运行中实现最高可靠性。
