FF3MR20KM1HP

CoolSiC ™ MOSFET半桥模块 2000 V
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF3MR20KM1HP
FF3MR20KM1HP
每件.

商品详情

  • RDS (on) (@ Tj = 25°C)
    2.6 mΩ
  • Housing
    62 mm
  • Dimensions (width)
    61.4 mm
  • Dimensions (length)
    106.4 mm
  • Applications
    EV Charger, Solar, UPS, Traction, ESS
  • Features
    TIM
  • Qualification
    Industrial
  • Configuration
    Half-bridge
OPN
FF3MR20KM1HPHPSA1
产品状态 active and preferred
英飞凌封装名称 AG-62MMHB
封装名 N/A
包装尺寸 8
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 AG-62MMHB
封装名 -
包装尺寸 8
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

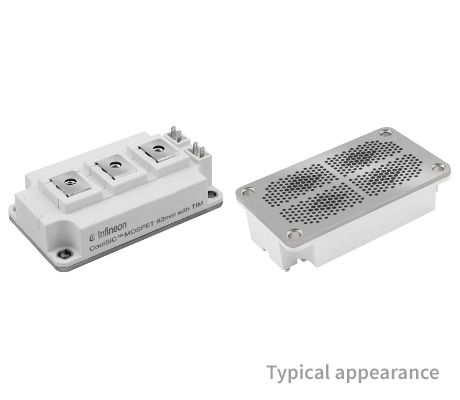

62 毫米 CoolSiC ™ MOSFET 半桥模块 2000 V、2.6 mΩ G1 采用著名的 62 毫米外壳,结合 M1H 芯片技术和预先应用的热界面材料 (TIM)。

特性

  • 高电流密度
  • 低开关损耗
  • 卓越的栅极氧化层可靠性
  • 最高的抗湿性
  • 坚固的集成体二极管
  • 高宇宙射线抗性
  • 高速开关模块
  • 对称模块设计
  • 标准构造技术

产品优势

  • 最大限度地减少冷却工作
  • 减小体积和尺寸
  • 降低系统成本
  • 提高芯片性能
