现货,推荐
符合RoHS标准
无铅

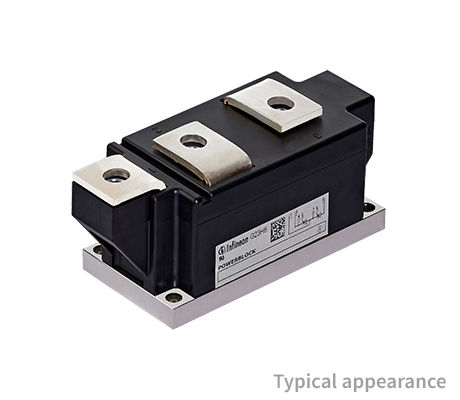

TT570N18KOF

60 毫米晶闸管/晶闸管模块,采用 1800 V 压接技术

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TT570N18KOF
TT570N18KOF

商品详情

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    200
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    566/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    16500
  • rT [mΩ] (@Tvj max)
    0.3
  • RthJC [K/W] (@180° el sin)
    0.058
  • Tvj [°C]
    125
  • VDRM / VRRM [V]
    1800
  • VT0 [V] (@Tvj max)
    0.8
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1361
  • Product Line
    Power Block
  • Housing
    60 mm
  • Configuration
    SCR / Diode Phase Control
OPN
TT570N18KOFHPSA1 TT570N18KOFXPSA1
产品状态 active and preferred coming soon
英飞凌封装名称 BG-PB60AT-1 BG-PB60E2C-1
封装名 N/A N/A
包装尺寸 2 2
包装类型 TRAY TRAY
湿度 N/A NA
防潮包装 NON DRY NON DRY
无铅 Yes Yes
无卤素 No Yes
符合RoHS标准 Yes Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 BG-PB60AT-1
封装名 -
包装尺寸 2
包装类型 TRAY
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

产品状态 coming soon
英飞凌封装名称 BG-PB60E2C-1
封装名 -
包装尺寸 2
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
晶闸管/晶闸管 60 毫米电源块 1800 V、570 A 模块,采用隔离铜底板,采用压力接触技术进行相位控制。

特性

  • 压接技术
  • 工业标准封装
  • 电绝缘底板
  • 故障时短路
  • 最高稳健性
