不建议用于新设计
符合RoHS标准

IAUA250N04S6N008

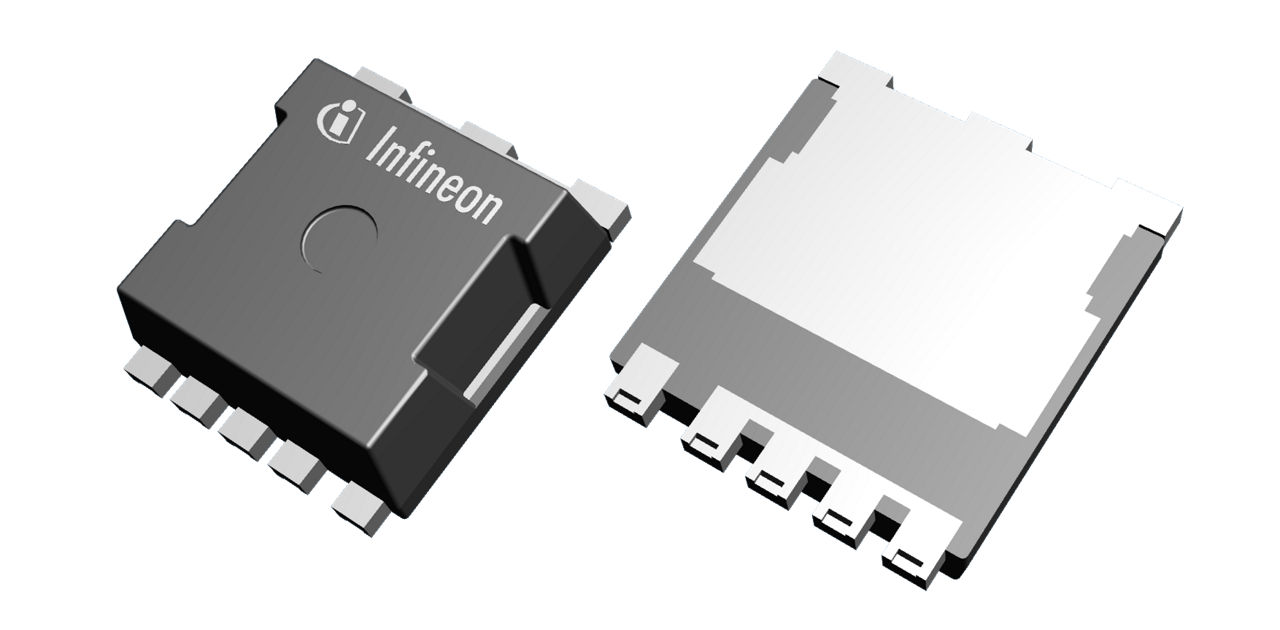

40 V、N 沟道 0.8 mΩ(最大值)、汽车 MOSFET、sTOLL (7x8)、OptiMOS ™ 6
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUA250N04S6N008
IAUA250N04S6N008
每件.

商品详情

  • ID max
    250 A
  • ID (@25°C) max
    250 A
  • QG (typ @10V)
    81 nC
  • QG (typ @10V) max
    109 nC
  • RDS (on) (@10V) max
    0.8 mΩ
  • VDS max
    40 V
  • VGS(th)
    2.6 V
  • Operating Temperature
    -55 °C to 175 °C
  • Technology
    OptiMOS™-6
  • Launch year
    2022
  • Polarity
    N
  • Currently planned availability until at least
    2029
  • Qualification
    Automotive
OPN
IAUA250N04S6N008AUMA1
产品状态 not for new design
英飞凌封装名称
封装名 sTOLL
包装尺寸 2000
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态 not for new design
英飞凌封装名称
封装名 sTOLL
包装尺寸 2000
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

特性

  • OptiMOS ™功率 MOSFET
  • N-ch.-正常等级增强模式
  • 超越 AEC-Q101 的扩展资格
  • 增强电气测试
  • 坚固的设计
  • MSL3 最高回流温度可达 260°C 峰值
  • 绿色产品(符合 RoHS 标准)
  • 100% Avalanche 测试
  • 支持 PPAP 的设备
