IRS2111S

具有击穿保护功能的 600 V 半桥栅极驱动器 IC
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2111S
IRS2111S
每件.

商品详情

  • VBS UVLO (On)
    8.6 V
  • VBS UVLO (Off)
    8.2 V
  • VCC UVLO (On)
    8.6 V
  • VCC UVLO (Off)
    8.2 V
  • Turn Off Propagation Delay
    150 ns
  • Turn On Propagation Delay
    750 ns
  • Voltage Class
    600 V
  • Qualification
    Industrial
  • Input Vcc
    10 V to 20 V
  • Output Current (Source)
    0.29 A
  • Output Current (Sink)
    0.6 A
  • Channels
    2
  • Configuration
    Half Bridge
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
OPN
IRS2111STRPBF
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
600 V 半桥驱动器 IC,具有典型的 0.29 A 拉电流和 0.6 A 灌电流,采用 8 引线 PDIP 封装,适用于 IGBT 和 MOSFET。也可提供 8 引脚 SOIC 封装。

特性

  • 用于引导操作的浮动驱动器。
  • 完全可在 +600 V 下运行
  • 可耐受负电压。瞬态电压。
  • dV/dt 免疫
  • 栅极驱动电源:10 V 至 20 V
  • 双通道欠压锁定
  • CMOS 施密特触发输入
  • 匹配属性。两个通道均延迟。
  • 内部设置死区时间
  • 高端输出与输入同相

应用

图表

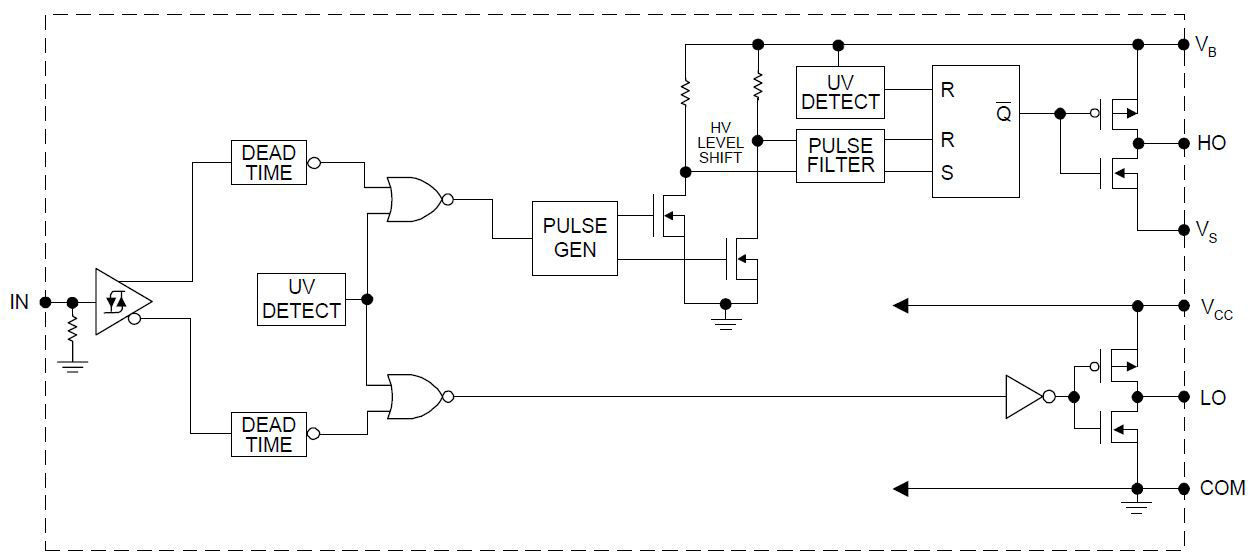

Circuit_Diagramm_IRS2111
Circuit_Diagramm_IRS2111
Circuit_Diagramm_IRS2111 Circuit_Diagramm_IRS2111 Circuit_Diagramm_IRS2111

文档

设计资源

开发者社区
