请注意,这是一个已停产的产品。 查看较新的替代产品版本 请注意,这是一个已停产的产品。 查看较新的替代产品版本
停产
已停产
符合RoHS标准
无铅

OC1120

停产
适用于蜂窝连接消费设备的 eSIM 交钥匙解决方案

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

OC1120
OC1120

商品详情

  • CPU
    32-bit
  • NVM / 凌捷掩膜
    800 kByte
  • Delivery Forms

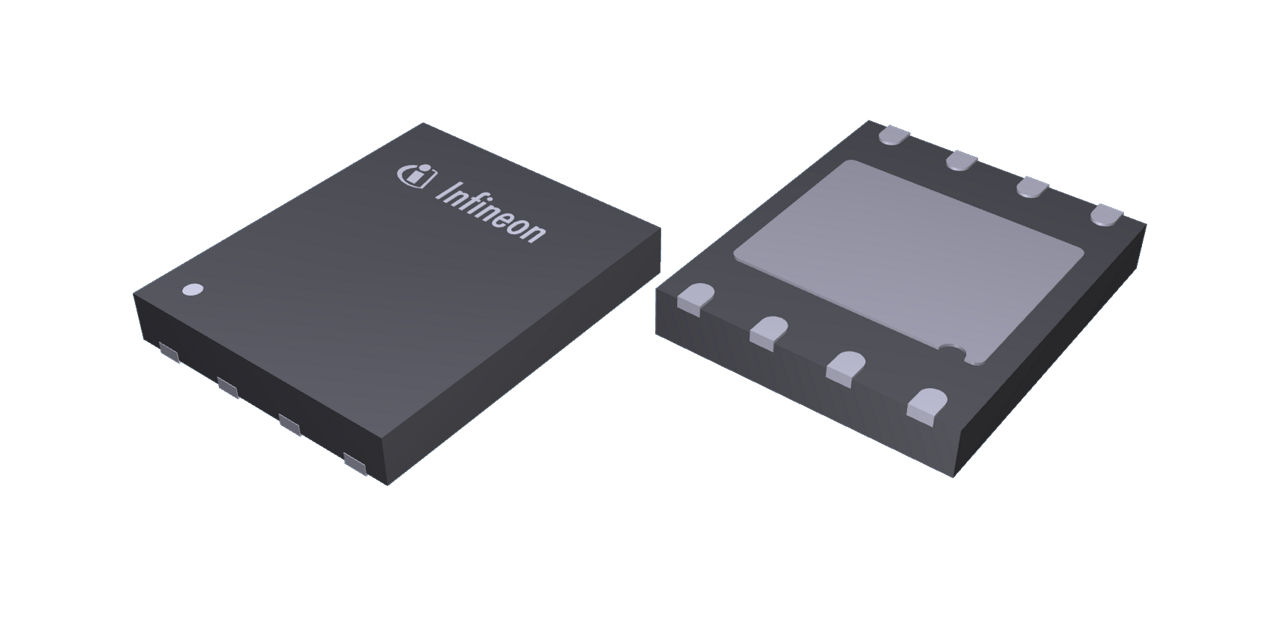

    XFWLB-25-3, VQFN-8-4
  • Product Description
    OPTIGA™ Connect Consumer OC1120 is an eSIM solution dedicated to consumer devices with full compatibility with all Mobile Network Operators offering GSMAS eSIM consumer services. OC1120 supports standard cellular technologies 2G, 3G, 4G-LTE as well as 5G.
  • Symmetric Cryptography
    AES up to 256 bit, DES
  • Package
    SG-XFWLB-25-3, PG-VQFN-8-4
  • Applications
    Consumer devices (smartphones, tablets, wearables, notebooks, Access points)
  • Interfaces
    ISO 7816
  • Ambient Temperature
    -25 °C to 85 °C
  • Use Cases
    eSIM (embedded SIM)
  • Certifications
    GSMA, 3GPP, CC EAL6+ certified hardware
  • Asymmetric Cryptography
    RSA up to 2048 bit, ECC up to 521 bit, NIST P-256, Brainpool256r1, FRP256V1
OPN
OC11200810WLB25XTSA1
产品状态 discontinued
英飞凌封装名称 SG-XFWLB-25
封装名 N/A
包装尺寸 1
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 discontinued
英飞凌封装名称 SG-XFWLB-25
封装名 -
包装尺寸 1
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
OPTIGA ™ Connect Consumer 是一款适用于消费设备的即用型 eSIM 解决方案。它特别适合将蜂窝连接扩展到智能手表、健身追踪器和其他可穿戴设备等小型设备。该 eSIM 解决方案完全符合 GSMA(SGP.22 V2.2.2)和可信连接联盟(eUICC Profile Package V2.3.1)的最新规范

特性

  • SIM、USIM、CSIM、RUIM 和 ISIM
  • RSP 符合 GSMA SGP.22 v2.2.2 要求
  • 符合 TCA eUICC Profile Pkg V2.3。
  • 芯片级和 ETSI MFF2 封装
  • 最多 800 kByte 可用内存
  • 已通过安全性评估 (BSI-CC-PP-0100-2018)
  • 电压等级:B、C
  • 温度:-25 至 +85°C
  • 数据保留:10年
  • RFM / RAM 的无线功能

产品优势

  • 提高客户便利性
  • 更高的设计灵活性
  • 面向未来的设备
  • 基于坚实的安全平台
  • 可互操作
  • 降低设计和鉴定工作量
