在产
符合RoHS标准
无铅

BSB028N06NN3 G

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSB028N06NN3 G
BSB028N06NN3 G

商品详情

  • Ciss
    8800 pF
  • Coss
    2100 pF
  • ID (@25°C) max
    90 A
  • IDpuls max
    360 A
  • Ptot max
    78 W
  • QG (typ @10V)
    108 nC
  • RDS (on) (@10V) max
    2.8 mΩ
  • Rth
    1 K/W
  • VDS max
    60 V
  • VGS(th)
    3 V

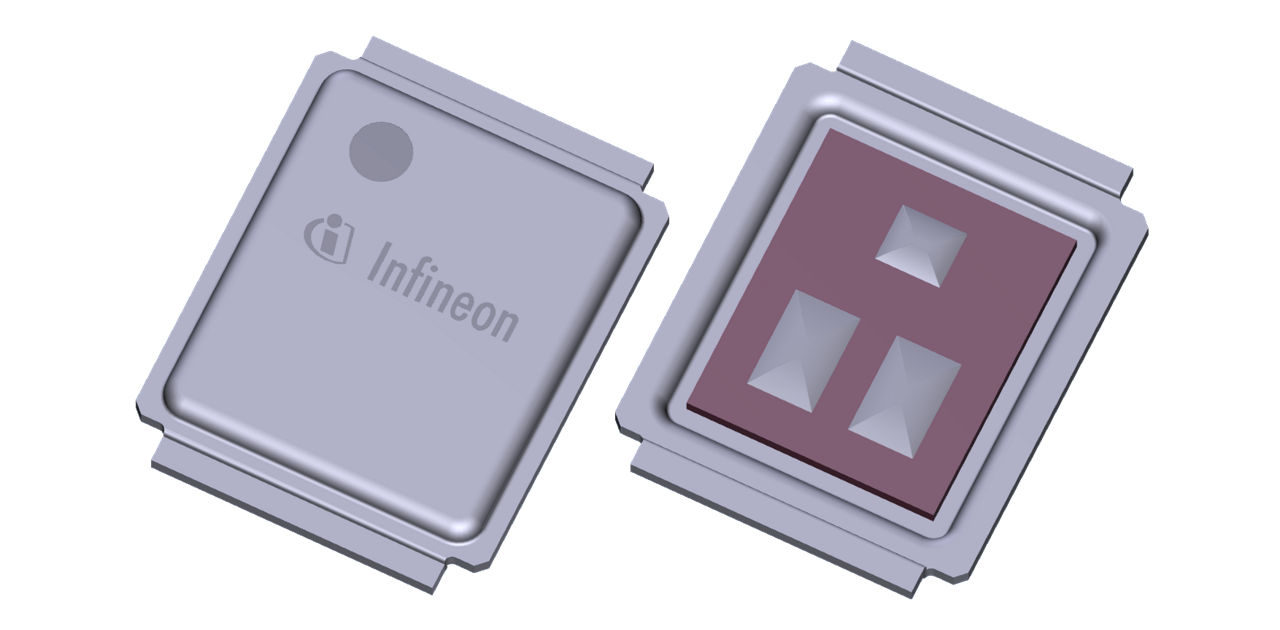

  • Package
    DirectFET (M)
  • Operating Temperature
    -40 °C to 150 °C
  • Micro-stencil
    IRF66MN-25
  • Polarity
    N
  • Budgetary Price €/1k
    0.89
OPN
BSB028N06NN3GXUMA2 BSB028N06NN3GXUMA1
产品状态 active discontinued
英飞凌封装名称
封装名 N/A DirectFET (M)
包装尺寸 4800 5000
包装类型 TAPE & REEL TAPE & REEL
湿度 3 3
防潮包装 DRY DRY
无铅 Yes Yes
无卤素 Yes Yes
符合RoHS标准 Yes Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 4800
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准

产品状态 discontinued
英飞凌封装名称
封装名 DirectFET (M)
包装尺寸 5000
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
OptiMOS ™ 60V 是服务器、台式机和平板电脑充电器等开关模式电源 (SMPS) 中同步整流的完美选择。此外,这些设备还可用于广泛的工业应用,包括电机控制、太阳能微型逆变器和快速开关 DC-DC 转换器。

特性

  • 电荷 x RDS(on)乘积 (FOM)
  • 低导通电阻 RDS(on)
  • 快速开关应用的理想选择
  • 符合 RoHS 标准 - 无卤素
  • MSL1 级

产品优势

  • 最高的系统效率
  • 更少的并联需求
  • 更高的功率密度
  • 降低系统成本
极低的电压过冲

应用
