请注意,这是一个已停产的产品。 查看较新的替代产品版本 请注意,这是一个已停产的产品。 查看较新的替代产品版本
停产
已停产
符合RoHS标准

TLS850F0TA V33

停产
TLS850F0TA V33 是一款高性能超低压差线性电压调节器,采用 PG-TO263-7 封装,适用于 3.3 V 电源。

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS850F0TA V33
TLS850F0TA V33

商品详情

  • Hold
    no
  • Accuracy
    2 %
  • Dropout Voltage
    80 mV
  • Enable (=Inhibit)
    yes
  • Base Product
    TLS850Fxxx
  • Reset
    yes
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3 V to 40 V
  • Status Output
    no
  • Power Fail
    no
  • Power Good
    no
  • Watchdog
    yes
  • Currently planned availability until at least
    n.a
  • Qualification
    Automotive
  • Regulator Type
    High Performance
  • Output Voltage Type
    3.3 V
  • Output Current max
    500 mA
  • Over Voltage Protection
    no
  • Quiescent Current
    40 µA
  • Budgetary Price €/1k
    1.11
  • Early Warning
    no
OPN
TLS850F0TAV33ATMA1
产品状态 discontinued
英飞凌封装名称
封装名 N/A
包装尺寸 1000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 discontinued
英飞凌封装名称
封装名 -
包装尺寸 1000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
TLS850F0TAV33 稳压器非常适合汽车或电池连接供电系统,提供 3V 至 40V 的输入范围、40μA 的低静态电流和 2% 的输出电压精度。它们采用新的环路概念,可实现快速调节和稳定性,适用于在启动条件下运行的汽车系统。

特性

  • 宽输入电压范围:3.0 V 至 40 V
  • 固定输出电压 3.3 V
  • 输出电压精度 ≤ ± 2 %
  • 输出电流能力高达 500 mA
  • 超低电流消耗(典型值)。40 μA
  • 典型值极低压差电压。80 mV@100 mA
  • 使用 1 μF 陶瓷输出电容时保持稳定
  • 上电时延迟复位:16.5 ms
  • 可调复位阈值低至 2.50 V
  • 具有固定时序和电流相关停用的看门狗:96 ms,在 IQ > 5.5 mA 时激活
  • 使能、欠压复位、过温关断
  • 输出电流限制
  • 宽温度范围
  • 绿色产品(符合 RoHS 标准)
  • 符合 AEC 认证

图表

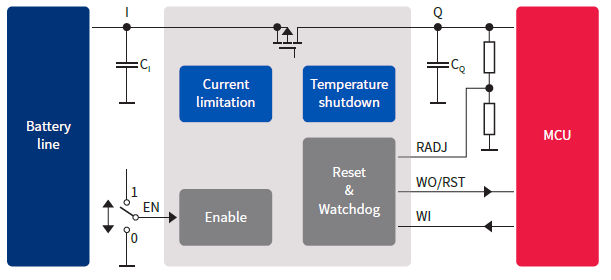

TLF850Fx_application_diagram
TLF850Fx_application_diagram
TLF850Fx_application_diagram TLF850Fx_application_diagram TLF850Fx_application_diagram
TLF850Fx_application_diagram TLF850Fx_application_diagram TLF850Fx_application_diagram

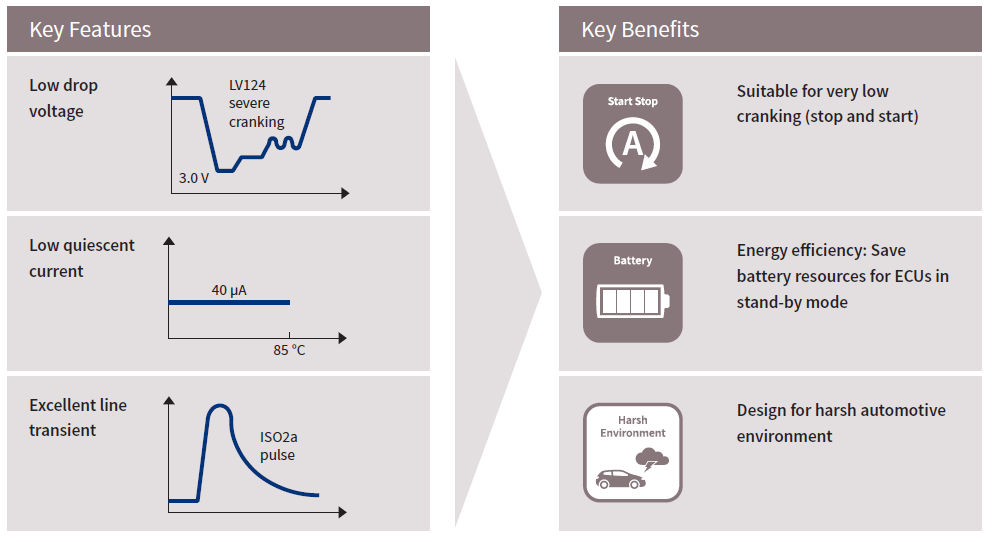

TLF850Fx_key_benefits TLF850Fx_key_benefits TLF850Fx_key_benefits
TLF850Fx_key_benefits TLF850Fx_key_benefits TLF850Fx_key_benefits
