S2GO RADAR BGT60LTR11

Shield2Go 配备 XENSIV ™ BGT60LTR11AIP 60 GHz 雷达传感器，适用于创客、开发者和原型设计
用户手册
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

S2GO RADAR BGT60LTR11
S2GO RADAR BGT60LTR11
每件.
用户手册

商品详情

  • Number of Rx Antennas max
    1
  • Number of Tx Antennas max
    1
  • Board Type
    Demo Board
  • Antenna
    Antennas in package
  • Halogen-free
    Yes
  • Max Detection Range
    11 m
  • Min Detection Range
    0.5 m
  • Target Application
    Contactless switches, mart home security and alarm systems including IP cameras, Smart appliances, Smart Home devices, Smart Building, Multicopter and drones, Lighting systems and lighting control (mainly indoor lighting), Displays such as TVs, Automated door openers
  • Family
    XENSIV™ 60GHz Radar Sensors
  • Qualification
    Industrial (JEDEC20/22)
  • Input Type
    DC
  • Direction of Motion
    Yes
  • Motion
    yes
  • Speed [m/s]
    Yes
  • Frequency
    61 GHz to 61.5 GHz
受到推崇的
OPN
S2GORADARBGT60LTR11TOBO1
产品状态 active
英飞凌封装名称 --
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 N/A
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
 每件. 有存货

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

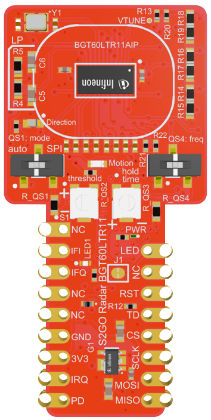

This Shield2Go features the XENSIV™ BGT60LTR11AIP 60 GHz radar sensor. This low-cost radar board, which supports both autonomous and SPI modes, is designed to facilitate the easy creation of radar-based prototypes and applications, particularly in smart home or LED-based applications. Its compact size and simple operation make it ideal for short-distance applications, and it can be powered by a single 3.3 V power supply. For further information and resources, please visit Infineon's GitHub or the DIY community on Hackster.

特性

  • 48.8 x 24.1 mm² 射频屏蔽尺寸
  • 设计与英飞凌的 Shield2Go 格式兼容
  • 在封装中嵌入带天线的 BGT60LTR11AIP 雷达
  • Pot。并切换以调整雷达设置 (QS)
  • 雷达可以在 SPI 或自主模式下运行
  • 运动和运动方向检测
  • 可在 Arduino IDE 和 Platform.IO 中编程

产品优势

  • 设计与英飞凌的 Shield2Go 格式兼容
  • 在封装中嵌入带天线的 BGT60LTR11AIP 雷达
  • Pot。并切换以调整雷达设置 (QS)
  • 雷达可以在 SPI 或自主模式下运行
  • 运动和运动方向检测
  • 可在 Arduino IDE 和 Platform.IO 中编程

应用
