TLF35585QVS01 BOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF35585QVS01 BOARD
TLF35585QVS01 BOARD

商品详情

  • 主板类型
    Demo Board
  • 产品类别
    Evaluation Boards
  • 供电电压
    3 V to 40 V
  • 子应用程序
    Powertrain, Electrical Drive Train, Safety Chassis
  • 应用
    Automotive
  • 目标应用程序
    Automotive
  • 系列
    DC-DC Converter, OPTIREG™ PMIC
  • 认证标准
    Automotive
  • 语言
    SPICE
  • 输出电压
    5.8 V
推荐的
OPN
TLF35585QVS01BOARDTOBO1
产品状态 active and preferred
英飞凌封装名称 N/A
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 No
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 N/A
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

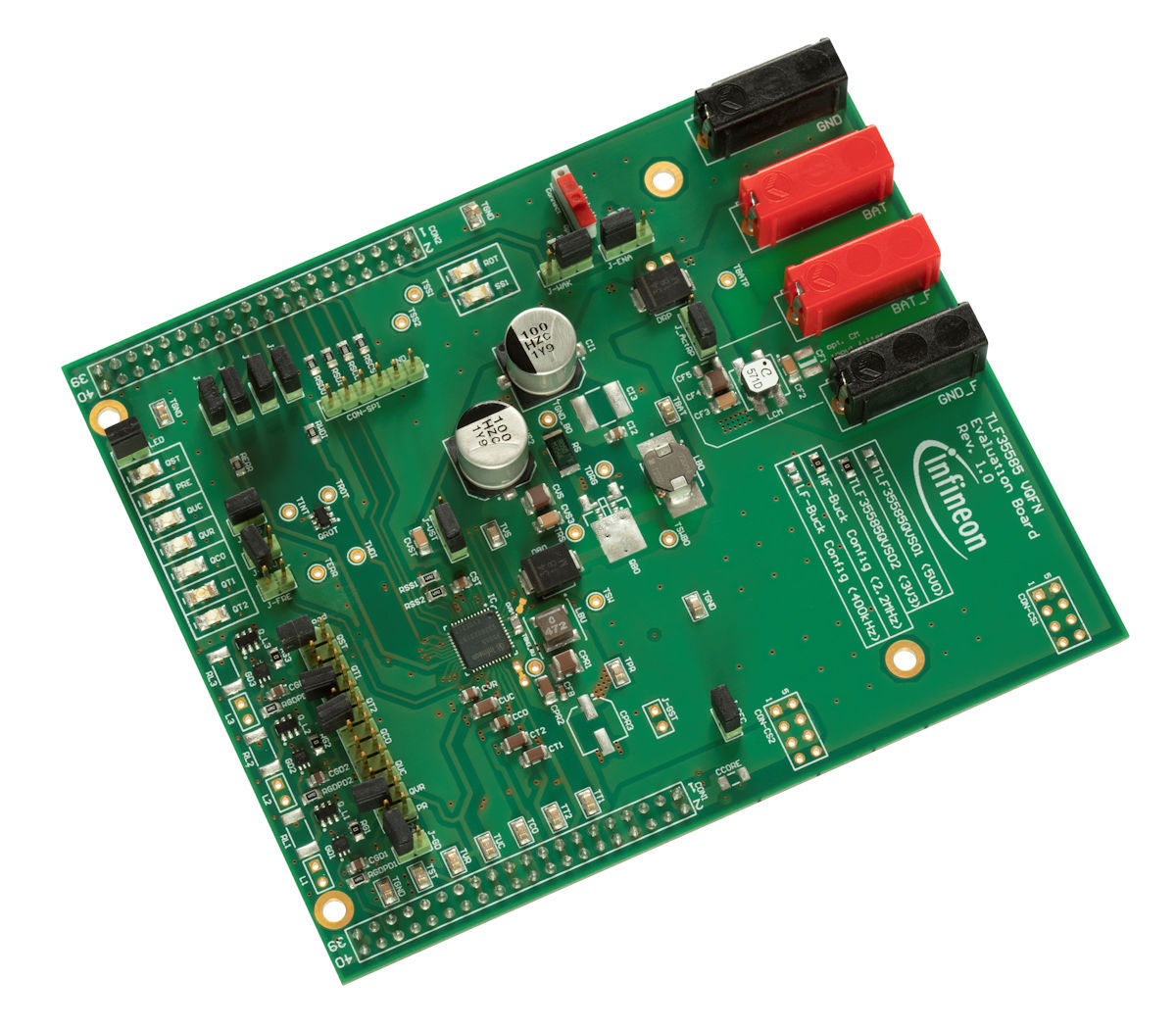

This application board enables you to test analog performance of the OPTIREGTM PMIC TLF35585QVS01, functional safety system – supply for AURIXTM microcontroller. The OPTIREGTM PMIC TLF35585 device consists of step up/down pre-regulator, three linear post regulators and two trackers VFB =5.8 V, Quc = 5.0 V/ 3.3 V, Qst = 5.0 V/ 3.3 V, Qco = 5.0 V, Qvr = 5.0 V, Qt1=Qt2 = 5.0 V. The board enables the user to test all power supply rails with external load resistors and to measure SPI signals, INT interrupt signal, ERR signal and window-watchdog service signal (WDI). Purchasing the Arduino shield buddy development board it is possible to test also the digital performance. For datasheet and further support, please contact your sales representative or the Technical Assistance Center (TAC).

特性

  • OPTIREGTM PMIC 和无源外部组件集成在一个 PCB 上
  • 优化布局
  • 提供连接器以实现快速子宫测量
  • 符合 ISO 26262 标准

产品优势

  • 除尘微控制器模块即可对TLF35x电源性能进行模拟测试
  • 测试FuSa相关功能：WWD、FWD、Err信号、SS1/SS2、INT
  • 优势
    • 在受保护的环境中熟悉TLF35x的安全系统供电机制
    • 获得专业知识并节省时间：PCB布局和BOM指示供试人员
    • 快速设置验证配置是否符合您的系统要求
